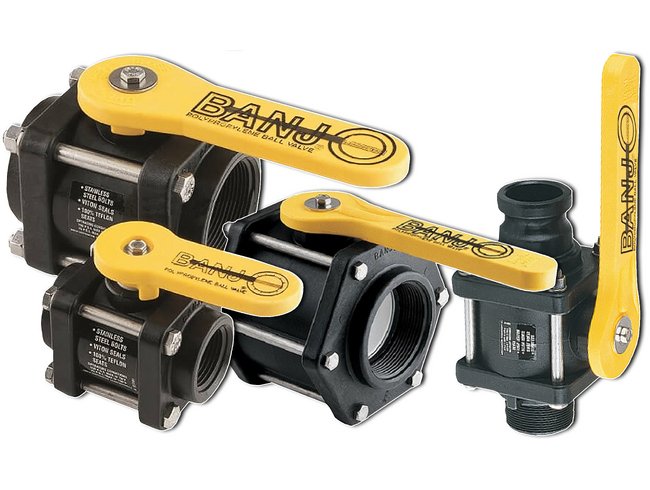

Banjo 1/2 inch Polypropylene Four Bolt Ball Valve
Banjo 1/2 inch Polypropylene Four Bolt Ball Valve
SKU:COU-289265
Reliable Banjo 1/2 inch Polypropylene Ball Valve, ideal for fluid transfer with precision control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Banjo 1/2 inch Polypropylene Four Bolt Ball Valve
$29.99
Quantity: 1
Claim Your Seller Account
Banjo 1/2 inch Polypropylene Four Bolt Ball Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Banjo Polypropylene Ball Valve offers precision and durability for a reliable fluid control solution. Crafted from reinforced fiberglass polypropylene with Viton O-Rings, PTFE stem, and seat materials, this valve ensures smooth operation at a maximum pressure of 100 psi. Its self-aligning ball and spherical construction guarantee optimal contact and minimal handle pressure. The valve's corrosion-resistant stainless steel fasteners allow for easy disassembly in challenging environments. Ideal for fluid transfer, this lightweight valve meets stringent quality standards for both consumer and institutional applications.
Product Specifications
Features
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.
Specifications Construction
Four Bolt
Specifications Fasteners Material
Stainless steel
Specifications Material
Polypropylene
Specifications Maximum Operating Pressure
100 psi
Specifications O Ring Material
Viton
Specifications Seat Material
PTFE
Specifications Size
1/2 in
Specifications Stem Material
PTFE
