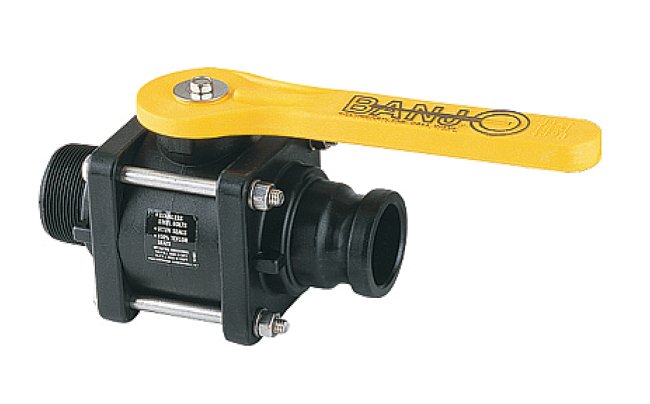

Banjo 2 Inch Four Bolt Polypropylene Ball Valves
Banjo 2 Inch Four Bolt Polypropylene Ball Valves
SKU:COU-3d7f9b
High-strength Banjo 2 Inch Polypropylene Ball Valves with smooth operation and durable construction, ideal for institutional use.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Banjo 2 Inch Four Bolt Polypropylene Ball Valves
$59.99
Quantity: 1
Claim Your Seller Account
Banjo 2 Inch Four Bolt Polypropylene Ball Valves
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Banjo 2 Inch Four Bolt Polypropylene Ball Valves are precision molded in reinforced polypropylene for exceptional strength. Featuring a self-aligning ball with PTFE seats, these valves offer smooth operation with minimal handle pressure. The spherically perfect diamond-turned ball ensures optimal contact with seats, while the Fluorocarbon O-ring stem seal, self-lubricating stem bushings, and corrosion-resistant stainless steel construction ensure long-lasting durability. Perfect for convenient liquid transfer, these valves meet stringent institutional procurement standards for reliability and performance.
Product Specifications
Features
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.
Specifications Construction
Four Bolt
Specifications Material
Polypropylene
Specifications Maximum Pressure At 150 Degree Fahrenheit F Tempe
75 psi
Specifications Maximum Pressure At 70 Degree Fahrenheit F Temper
100 psi
Specifications Seal Material
Fluorocarbon (FKM)
Specifications Size
2 in
Specifications Style
2 in. Male NPT Thread x 2 in. Male Adapter
