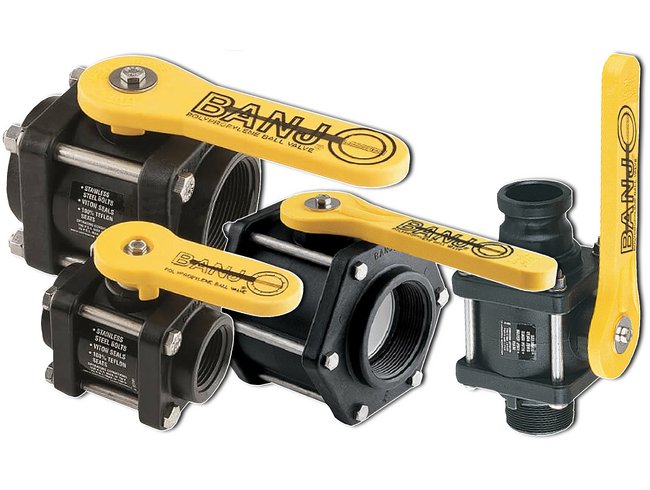

Upgrade your fluid control system with the Banjo 2 Inch Full Port Polypropylene Ball Valve. Crafted from reinforced fiberglass polypropylene, this valve ensures top-notch durability and smooth operation. Featuring self-lubricating PTFE seats, diamond-turned ball for optimal sealing, and a Fluorocarbon stem seal, this valve is designed for precision and reliability. Suitable for corrosive conditions with stainless steel fasteners, this valve guarantees easy disassembly. Ideal for institutional applications requiring strength, precision, and ease of maintenance.
Product Specifications
Features
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.
Specifications Construction
Four Bolt Full Port
Specifications Fasteners Material
Stainless steel
Specifications Material
Polypropylene
Specifications Maximum Operating Pressure
100 psi
Specifications O Ring Material
Viton
Specifications Seat Material
PTFE
Specifications Size
2 in
Specifications Stem Material
PTFE
