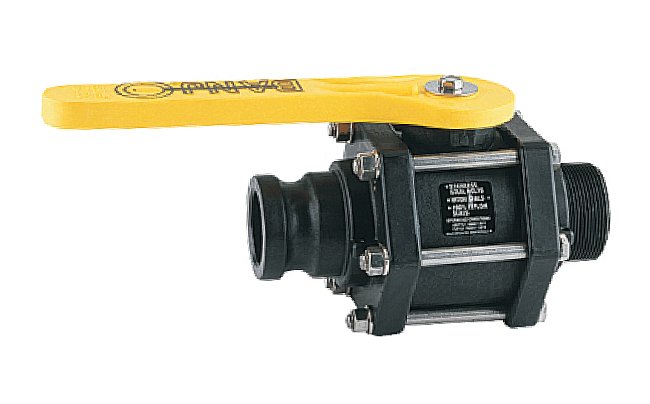

Banjo 2 Inch Six Bolt Polypropylene Ball Valve
Banjo 2 Inch Six Bolt Polypropylene Ball Valve
SKU:COU-5da032
Upgrade to the durable Banjo 2 Inch Polypropylene Ball Valve for reliable industrial fluid control.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Banjo 2 Inch Six Bolt Polypropylene Ball Valve
$39.99
Quantity: 1
Claim Your Seller Account
Banjo 2 Inch Six Bolt Polypropylene Ball Valve
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid control with the Banjo 2 Inch Six Bolt Polypropylene Ball Valve. Made of reinforced polypropylene, this valve ensures durability and smooth operation. Featuring self-aligning ball technology, diamond-turned for precision, and supported by PTFE stem and seat materials, it guarantees reliable performance. With a maximum pressure of 100 psi at 70°F and 75 psi at 150°F, this valve is ideal for a range of applications. Stainless steel nuts and bolts allow for easy disassembly in corrosive conditions, making maintenance a breeze.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.
Specifications Construction
Six Bolt
Specifications Material
Polypropylene
Specifications Maximum Pressure At 150 Degree Fahrenheit F Tempe
75 psi
Specifications Maximum Pressure At 70 Degree Fahrenheit F Temper
100 psi
Specifications O Ring Material
Viton
Specifications Seat Material
PTFE
Specifications Size
2 in
Specifications Stem Material
PTFE
Specifications Style
2 in. Male Adapter x 2 in. Male NPT Thread
