Banjo 2" Polypropylene Ball Valve with Four Bolt Construction
Banjo 2" Polypropylene Ball Valve with Four Bolt Construction
SKU:COU-ef848f
Durable Banjo 2" Polypropylene Ball Valve, self-aligning ball, Fluorocarbon seal, PTFE bushings, ideal for institutional use.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Banjo 2" Polypropylene Ball Valve with Four Bolt Construction
$35.99
Quantity: 1
Claim Your Seller Account
Banjo 2" Polypropylene Ball Valve with Four Bolt Construction
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

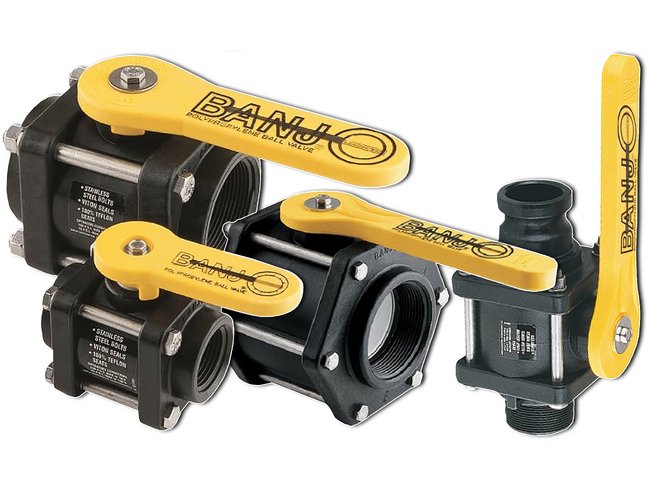

The Banjo 2 Inch Polypropylene Ball Valve with Four Bolt Construction is a precision-molded valve designed for durability and smooth operation. Reinforced with fiberglass, the polypropylene body ensures added strength. Featuring self-aligning ball movement against PTFE seats, this valve opens and closes effortlessly. With a spherically perfect diamond-turned ball, it ensures optimal contact with the seats. The valve is equipped with a Fluorocarbon "O" ring stem seal, PTFE self-lubricating stem bushings, and rust-resistant stainless steel fasteners for easy disassembly. Ideal for institutional settings requiring reliability and convenience.
Product Specifications
Features
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.
Specifications Construction
Four Bolt
Specifications Fasteners Material
Stainless steel
Specifications Material
Polypropylene
Specifications Maximum Operating Pressure
100 psi
Specifications O Ring Material
Viton
Specifications Seat Material
PTFE
Specifications Size
2 in
Specifications Stem Material
PTFE
