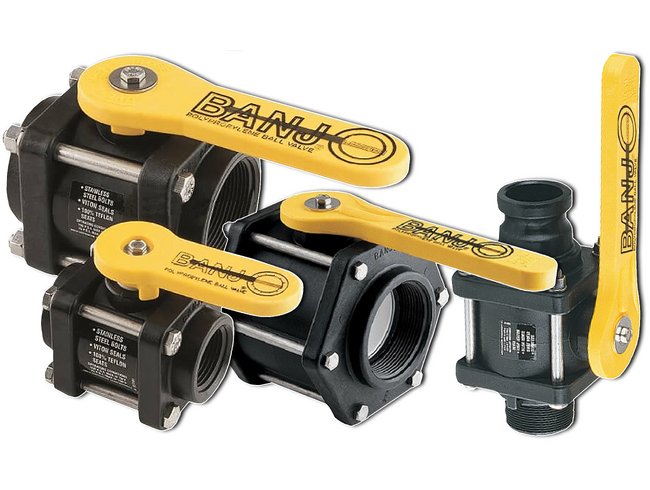

Banjo 2 x 1 1/2 Inch Four Bolt Polypropylene Ball Valve

Banjo 2 x 1 1/2 Inch Four Bolt Polypropylene Ball Valve

COU-bfd897

Durable Banjo 2 x 1 1/2 Inch Four Bolt Polypropylene Ball Valve with smooth operation, corrosion resistance, and easy disassembly.

$45.99
$45.99
Sale

Initiate Order

Banjo 2 x 1 1/2 Inch Four Bolt Polypropylene Ball Valve

Banjo 2 x 1 1/2 Inch Four Bolt Polypropylene Ball Valve

$45.99

Quantity: 1

Claim Your Seller Account

Banjo 2 x 1 1/2 Inch Four Bolt Polypropylene Ball Valve

Banjo 2 x 1 1/2 Inch Four Bolt Polypropylene Ball Valve

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Banjo 2 x 1 1/2 Inch Four Bolt Polypropylene Ball Valve is a durable and reliable valve designed for industrial applications. Constructed with reinforced fiberglass polypropylene, this valve is built to withstand high pressure with ease. The self-aligning ball and PTFE seats ensure smooth operation with minimal handle pressure. Featuring a diamond-turned ball for perfect sphericity, along with FKM O-ring stem seal and self-lubricating PTFE bushings, this valve prevents sticking and rusting, even in corrosive conditions. With stainless steel nuts and bolts for easy disassembly, this valve offers convenience and longevity. Ideal for fluid transfer, this valve is a lightweight yet robust solution.

Product Specifications

Features
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.
Specifications Construction
Four Bolt
Specifications Fasteners Material
Stainless steel
Specifications Material
Polypropylene
Specifications Maximum Operating Pressure
100 psi
Specifications O Ring Material
Viton
Specifications Seat Material
PTFE
Specifications Size
2 x 1 1/2 in
Specifications Stem Material
PTFE
