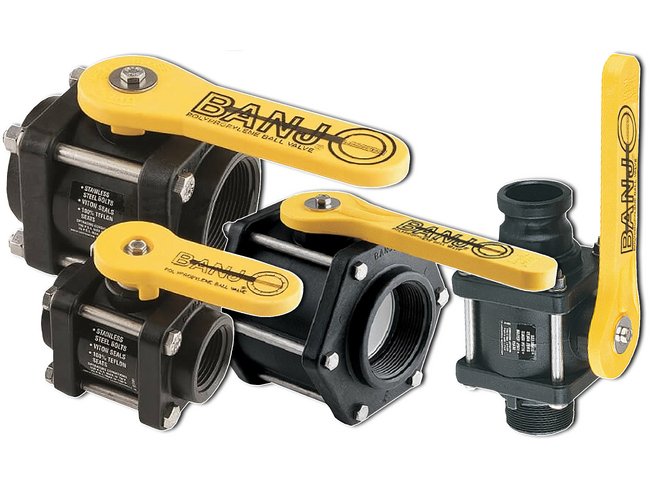

Banjo 3 Inch Polypropylene Ball Valve

Name: Banjo 3 Inch Polypropylene Ball Valve
Brand: Seal Fast, Inc.
SKU: COU-422fc7
Price: 69.99 USD
Availability: OutOfStock

SKU:COU-422fc7

Precision and durability define the Banjo 3 Inch Polypropylene Ball Valve. Ideal for fluid control systems.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your fluid control system with the Banjo 3 Inch Polypropylene Ball Valve. Precision-molded in reinforced polypropylene, this valve features self-aligning balls for smooth operation and PTFE seats that resist sticking and rust. With a diamond-turned ball for optimal contact, stainless steel fasteners for corrosion resistance, and a lightweight design for easy liquid transfer, this valve ensures reliability and efficiency. Compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, it meets industry-specific certifications and TAA compliance.

Product Specifications

Features

Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.

Specifications Construction

Four Bolt

Specifications Fasteners Material

Stainless steel

Specifications Material

Polypropylene

Specifications Maximum Operating Pressure

100 psi

Specifications O Ring Material

Viton

Specifications Seat Material

PTFE

Specifications Size

3 in

Specifications Stem Material

PTFE

Banjo 3 Inch Polypropylene Ball Valve
