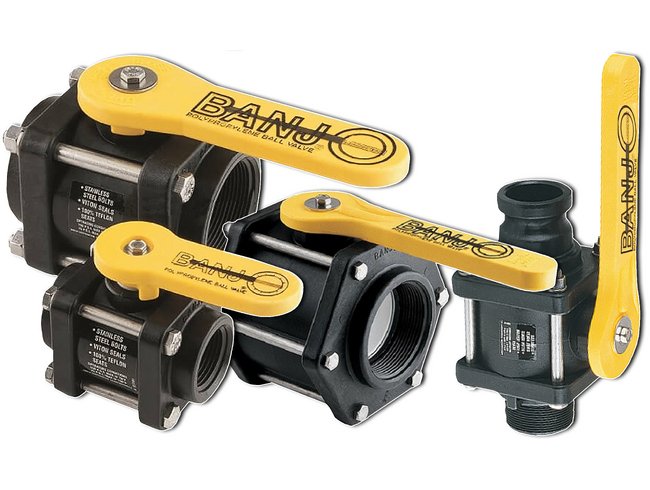

Banjo Polypropylene Four Bolt Ball Valve, 1 1/4 Inch
Banjo Polypropylene Four Bolt Ball Valve, 1 1/4 Inch
SKU:COU-baa606
Banjo Polypropylene Ball Valve: Precision-molded for smooth operation & corrosion resistance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Banjo Polypropylene Four Bolt Ball Valve, 1 1/4 Inch
$34.99
Quantity: 1
Claim Your Seller Account
Banjo Polypropylene Four Bolt Ball Valve, 1 1/4 Inch
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with the Banjo Polypropylene Four Bolt Ball Valve, featuring precision-molded polypropylene construction reinforced with fiberglass. Equipped with a self-aligning ball for smooth operation, diamond-turned for perfect sphericity. With a maximum operating pressure of 100 psi, this valve ensures reliability and durability in corrosive conditions. The Fluorocarbon seal and PTFE stem bushings enhance performance while the stainless steel fasteners allow for easy disassembly. Ideal for institutional applications requiring strong, reliable fluid control solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.
Specifications Construction
Four Bolt
Specifications Fasteners Material
Stainless steel
Specifications Material
Polypropylene
Specifications Maximum Operating Pressure
100 psi
Specifications O Ring Material
Viton
Specifications Seat Material
PTFE
Specifications Size
1 1/4 in
Specifications Stem Material
PTFE
