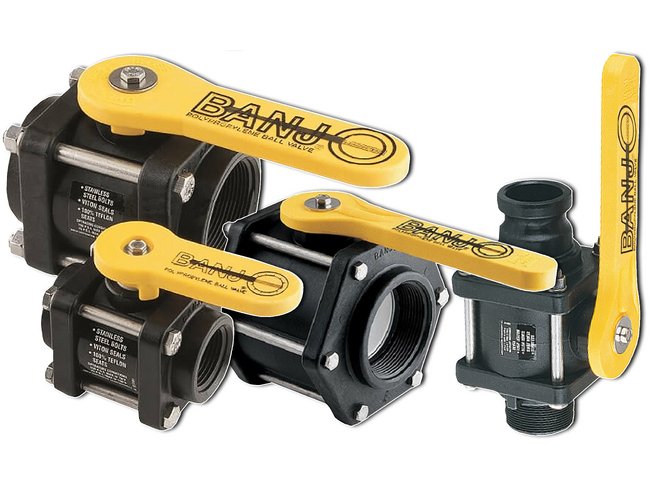

The Banjo Polypropylene Full Port Ball Valve in 1 1/2-inch size is a durable and versatile valve designed for smooth operation and lasting performance. Constructed with reinforced fiberglass polypropylene and featuring PTFE self-lubricating stem bushings, this valve ensures reliable sealing and corrosion resistance. The diamond-turned ball provides optimal contact with seats, while the stainless steel fasteners allow for easy disassembly in harsh conditions. With a maximum operating pressure of 100 psi, this valve is ideal for industrial applications requiring precision and durability.
Product Specifications
Features
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.Ball is diamond turned after molding to make it spherically perfect, which provides the right contact between ball and seats.Fluorocarbon (FKM) "O" ring stem seal.PTFE self-lubricating stem bushings and seats cannot stick or rust.Stainless steel nuts and bolts are used to insure easy disassembly in corrosive conditions.Sizes 1/2" thru 2" have a four bolt construction. 2“ full port, and 3" full port have six bolt construction. All have Fluorocarbon (FKM) O-Rings and PTFE seats as a standard.Lightweight hose end valve for convenient transfer of liquids. Angle and flange with 8" long poly propylene fill spout. Same features as straight through valve.
Specifications Construction
Four Bolt Full Port
Specifications Fasteners Material
Stainless steel
Specifications Material
Polypropylene
Specifications Maximum Operating Pressure
100 psi
Specifications O Ring Material
Viton
Specifications Seat Material
PTFE
Specifications Size
1 1/2 in
Specifications Stem Material
PTFE
