Baseline 9000 Heated Total Hydrocarbons Analyzer
Baseline 9000 Heated Total Hydrocarbons Analyzer
SKU:PRO-321374
High-performance Baseline 9000 H-THA Analyzer for precise heated hydrocarbon analysis. Ideal for compliance monitoring and emissions testing.
Regular price
$12,500.00
Regular price
Sale price
$12,500.00
Unit price
per
Initiate Order
Baseline 9000 Heated Total Hydrocarbons Analyzer
$12,500.00
Quantity: 1
Claim Your Seller Account
Baseline 9000 Heated Total Hydrocarbons Analyzer
$12,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

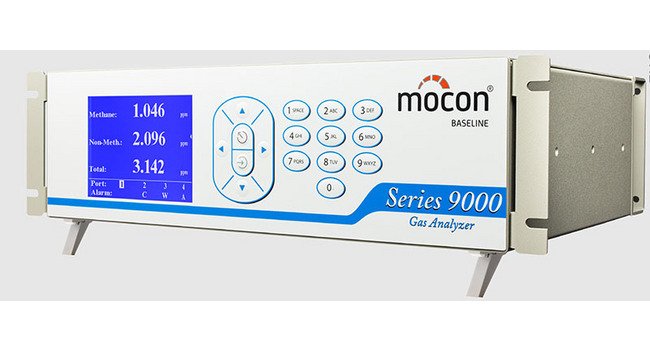

The Baseline 9000 H-THA Heated Total Hydrocarbons Analyzer is a precision instrument designed for single-point analysis of heated samples up to 376°F. Featuring a Flame Ionization Detector (FID) with Oxidizer, user-definable ranges from Very Low to High concentrations, and multilevel concentration alarms, this analyzer ensures accurate and reliable hydrocarbon measurements. With automatic FID ignition, internal multi-point sampling options, and graphical LCD display, it offers ease of use and customizable output options. Ideal for compliance monitoring, emission stack analysis, and emissions testing, the Baseline 9000 meets rigorous industry standards for analytical performance and reliability.
Product Specifications
Additional Information Additional Information
All instrument parameters are reported clearly and continually refreshed on a large, graphical LCD display. Using analog, digital, and logic output communication capabilities, analytical information from the analyzer can be acquired using an external PC and a simple communications program such as Windows® HyperTerminal or the analyzer can output binary or ASCII formats directly to a data acquisition system or PLC. Every Baseline® 9000 analyzer includes MOCONâs free PC utility 9000 Keeper used for storing and uploading multiple methods, as well as sending configuration settings, directly to the analyzer.
Applications Applications
Compliance monitoring for EPA Method 25AContinuous emission stack monitoringScrubber and oxidizer efficiencyCarbon bed breakthrough detectionVehicle emissions
Configuration Configuration
Benchtop or 19" (48.3 cm) Rack-Mount, 3U
Features Features
Automatic FID ignitionAutomatic calibration at user-defined intervalsInternal multi-point sampling optionElectronic back-pressure regulator with sample bypass systemFlow Guard Control of fuel, air, and sampleGraphic LCD display with easy to use menuBenchtop or rack-mountableSingle or multi-point samplingCustomizable Ethernet or serial outputProgrammable analog output rangesProgrammable relays for iagnostics, concentration, alarms, and events
Specifications Accuracy
+1% full-scale response.
Specifications Alarms
Multilevel concentration and fault alarms, audible and visual.
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Calibration
Manual Calibration | Programmable Automatic
Specifications Current
1 A
Specifications Depth
16.25 in | 41.28 cm
Specifications Detector
Flame Ionization Detector (FID) with Oxidizer
Specifications Display Length
4.5 in | 11.43 cm
Specifications Display Type
Graphical Liquid Crystal Display (LCD)
Specifications Display Width
3.4 in | 8.64 cm
Specifications Drift Span
+1% full-scale, 24 hours.
Specifications Drift Zero
+0.025% full-scale, 24 hours.
Specifications Frequency
50 Hz | 60 Hz
Specifications Gas Generators
Hydrogen GeneratorZero Air generators
Specifications Height
5.25 in | 13.02 cm
Specifications Non Condensing Operating Humidity
0 to 95 %
Specifications Operating Temperature
32 to 104 ºF | 0 to 40 ºC
Specifications Outputs
LAN/Ethernet, RS-232Analog, 1 programmable 0-20mA/4-20mA isolated outputRelays, 5 programmable From A relays rated to 3A at 230VAC
Specifications Prevenitive Maintenance Kit
Includes all parts potentially needed on-hand
Specifications Ranges Ch4
User definable based upon calibration:Very Low - 0.15 ppm to 200 ppmLow - 0.3 ppm to 2,000 ppmMedium - 0.6 ppm to 20,000 ppmHigh 0.003% to 50%
Specifications Response Time
T90 < 5 s
Specifications Sampling
Internal single point (pump optional)
Specifications Service And Support Options
Start-up and training, 1 day onsite
Specifications Software
9000 Keeper provided for method switching via PC
Specifications Support Gas Requirement
UHP Hydrogen (H2) 30 cc/minZero air - 175 cc/minSpan gas - methane is typical
Specifications Weight
<20 lb | 9.07 kg
Specifications Width
19 in | 48.26 cm
