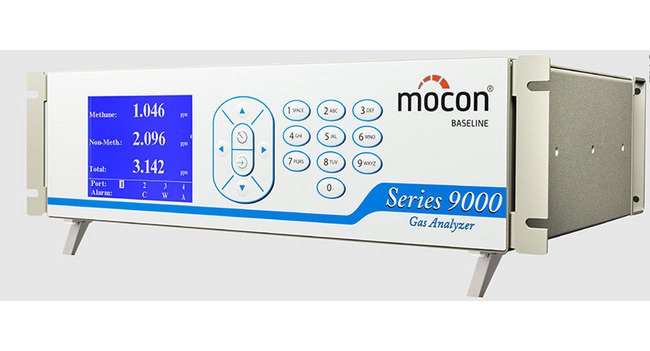

BASELINE 9000 MNME Hydrocarbon Analyzer
BASELINE 9000 MNME Hydrocarbon Analyzer
SKU:PRO-eeaef0
Cutting-edge BASELINE 9000 MNME Analyzer for precise hydrocarbon measurement with rapid response, versatile calibration, and comprehensive support.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
BASELINE 9000 MNME Hydrocarbon Analyzer
$12,999.99
Quantity: 1
Claim Your Seller Account
BASELINE 9000 MNME Hydrocarbon Analyzer
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BASELINE 9000 MNME Methane/Non-Methane Analyzer is a cutting-edge solution for accurate hydrocarbon analysis. Utilizing a Flame Ionization Detector (FID) and oxidation catalyst, this analyzer ensures precise measurements by oxidizing all hydrocarbons except methane. With user-definable detection ranges, rapid response time, multilevel alarms, and versatile calibration options, it caters to a range of applications from environmental monitoring to industrial safety. The device is equipped with features like automatic FID ignition, customizable output options, and comprehensive support for ease of use and maintenance.
Product Specifications
Additional Information Additional Information
All instrument parameters are reported clearly and continually refreshed on a large, graphical LCD display. Using analog, digital, and logic output communication capabilities, analytical information from the analyzer can be acquired using an external PC and a simple communications program such as Windows® HyperTerminal or the analyzer can output binary or ASCII formats directly to a data acquisition system or PLC. Every Baseline® 9000 analyzer includes MOCONâs free PC utility 9000 Keeper used for storing and uploading multiple methods, as well as sending configuration settings, directly to the analyzer.
Applications Applications
VOC Continuous emission monitoring systems Ambient air quality monitoring system Airborne molecular contamination Available in ambient or 120º for heated samplesBeverage-grade CO2 analysisUltra-Pure gasesWell LoggingIndustrial hygiene & safetyLEL monitoringVOC continuous emission monitoring systemsAmbient air quality monitoring systemAirborne molecular contaminationCompliance monitoring for EPA Method 25A Continuous emission stack monitoringVehicle emissions
Configuration Configuration
Benchtop or 19" (48.3 cm) Rack-Mount, 3U
Features Features
Automatic FID ignitionAutomatic calibration at user-defined intervalsInternal multi-point sampling optionElectronic back-pressure regulator with sample bypass systemFlow Guard Control of fuel, air, and sampleGraphic LCD display with easy to use menuBenchtop or rack-mountableSingle or multi-point samplingCustomizable Ethernet or serial outputProgrammable analog output rangesProgrammable relays for iagnostics, concentration, alarms, and events
Specifications Accuracy
+1% full-scale response.
Specifications Accurate Detection
User definable rangesAutomatic adjustment for catalyst efficiency varianceFast (<30 sec) reproduceable responseAutomatic calibration
Specifications Alarms
Multilevel concentration and fault alarms, audible and visual.
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Calibration
Manual Calibration | Programmable Automatic
Specifications Current
1 A
Specifications Depth
16.25 in | 41.28 cm
Specifications Detector
Flame Ionization Detector (FID) with Oxidizer
Specifications Display Length
4.5 in | 11.43 cm
Specifications Display Type
Graphical Liquid Crystal Display (LCD)
Specifications Display Width
3.4 in | 8.64 cm
Specifications Drift Span
+1% full-scale, 24 hours.
Specifications Drift Zero
+0.01% full-scale, 24 hours.
Specifications Frequency
50 Hz | 60 Hz
Specifications Gas Generators
Hydrogen GeneratorZero Air generators
Specifications Height
5.25 in | 13.02 cm
Specifications Non Condensing Operating Humidity
0 to 95 %
Specifications Operating Temperature
32 to 104 ºF | 0 to 40 ºC
Specifications Outputs
LAN/Ethernet, RS-232Analog, 1 programmable 0-20mA/4-20mA isolated outputRelays, 5 programmable From A relays rated to 3A at 230VAC(Optional)3 additional analogs
Specifications Prevenitive Maintenance Kit
Includes all parts potentially needed on-hand
Specifications Ranges Ch4
User definable based upon calibration:Low - 0.03 ppm to 50 ppmMedium - 0.06 ppm to 500 ppmHigh - 0.15 ppm to 5000 ppm
Specifications Response Time
T90 < 30 s
Specifications Sampling
Internal single or multi-point, (pump optional)
Specifications Service And Support Options
Start-up and training, 1 day onsite
Specifications Software
9000 Keeper provided for method switching via PC
Specifications Support Gas Requirement
UHP Hydrogen (H2) 35 cc/minZero air - 175 cc/minSpan gas - methane/propane is typical
Specifications Weight
<20 lb | 9.07 kg
Specifications Width
19 in | 48.26 cm
