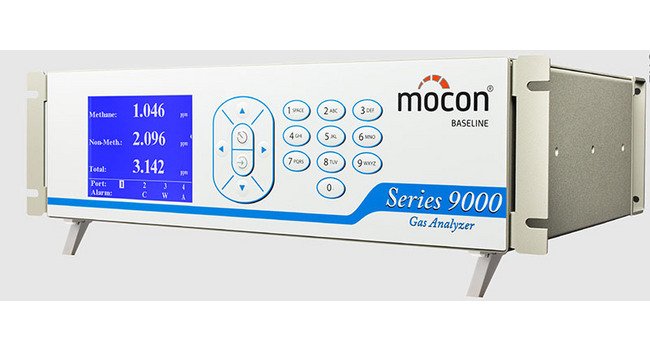

Baseline 9000 TCA Hydrocarbons & CO/CO2 Analyzer
Baseline 9000 TCA Hydrocarbons & CO/CO2 Analyzer
SKU:PRO-e02107
Cutting-edge Baseline 9000 TCA Analyzer with FID & methanizer for precise total carbon measurements in ultra-pure gases. Versatile & user-friendly.
Regular price
$12,999.00
Regular price
Sale price
$12,999.00
Unit price
per
Initiate Order
Baseline 9000 TCA Hydrocarbons & CO/CO2 Analyzer
$12,999.00
Quantity: 1
Claim Your Seller Account
Baseline 9000 TCA Hydrocarbons & CO/CO2 Analyzer
$12,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Baseline 9000 TCA Hydrocarbons and CO/CO2 Analyzer is a cutting-edge instrument designed for accurate total carbon measurements by utilizing a Flame Ionization Detector (FID) and a catalytic methanizer. This analyzer offers user-definable detection ranges, automatic calibration, and drift <0.01% of full-scale over 24 hours. With features like internal sampling, multilevel alarms, LAN/Ethernet outputs, and preventative maintenance kit, it ensures precise readings and easy maintenance. Ideal for measuring hydrocarbons and CO/CO2 impurities in ultra-pure gases, this analyzer is benchtop or rack-mountable, making it versatile for various applications.
Product Specifications
Additional Information Additional Information
All instrument parameters are reported clearly and continually refreshed on a large, graphical LCD display. Using analog, digital, and logic output communication capabilities, analytical information from the analyzer can be acquired using an external PC and a simple communications program such as Windows® HyperTerminal or the analyzer can output binary or ASCII formats directly to a data acquisition system or PLC. Every Baseline® 9000 analyzer includes MOCONâs free PC utility 9000 Keeper used for storing and uploading multiple methods, as well as sending configuration settings, directly to the analyzer.
Applications Applications
Hydrocarbon & CO/CO2 Impurities in Ultra-Pure GassesArgon, ArHelium, HeHydrogen, H2Nitrogen, N2
Configuration Configuration
Benchtop or 19" (48.3 cm) Rack-Mount, 3U
Features Features
Automatic FID ignitionAutomatic calibration at user-defined intervalsInternal multi-point sampling optionElectronic back-pressure regulator with sample bypass systemFlow Guard Control of fuel, air, and sampleGraphic LCD display with easy to use menuBenchtop or rack-mountableSingle or multi-point samplingCustomizable Ethernet or serial outputProgrammable analog output rangesProgrammable relays for iagnostics, concentration, alarms, and events
Specifications Accuracy
+1% full-scale response.
Specifications Accurate Detection
User definable rangesDetection limits <100 ppb as methaneAutomatic calibrationDrift <0.01% of full-scale over 24 hours
Specifications Alarms
Multilevel concentration and fault alarms, audible and visual.
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Calibration
Manual Calibration | Programmable Automatic
Specifications Current
1 A
Specifications Depth
16.25 in | 41.28 cm
Specifications Detector
Flame Ionization Detector (FID)
Specifications Display Length
4.5 in | 11.43 cm
Specifications Display Type
Graphical Liquid Crystal Display (LCD)
Specifications Display Width
3.4 in | 8.64 cm
Specifications Drift Span
+1% full-scale, 24 hours.
Specifications Drift Zero
+0.01% full-scale, 24 hours.
Specifications Frequency
50 Hz | 60 Hz
Specifications Gas Generators
Hydrogen GeneratorZero Air generators
Specifications Height
5.25 in | 13.02 cm
Specifications Non Condensing Operating Humidity
0 to 95 %
Specifications Operating Temperature
32 to 104 ºF | 0 to 40 ºC
Specifications Outputs
LAN/Ethernet, RS-232Analog, 1 programmable 0-20mA/4-20mA isolated outputRelays, 5 programmable From A relays rated to 3A at 230VAC
Specifications Prevenitive Maintenance Kit
Includes all parts potentially needed on-hand
Specifications Ranges Ch4
User definable based upon calibration:Low - 0.1 ppm to 100 ppm
Specifications Response Time
T90 < 30 s
Specifications Sampling
Internal single point (pump optional)
Specifications Service And Support Options
Start-up and training, 1 day onsite
Specifications Software
9000 Keeper provided for method switching via PC
Specifications Support Gas Requirement
UHP Hydrogen (H2) 30 cc/minZero air - 175 cc/minSpan gas - methane with CO or CO2typical
Specifications Weight
<20 lb | 9.07 kg
Specifications Width
19 in | 48.26 cm
