Baseline 9000 Total Hydrocarbons Analyzer
Baseline 9000 Total Hydrocarbons Analyzer
SKU:PRO-915421
Cutting-edge Total Hydrocarbons Analyzer for accurate industrial-grade hydrocarbon analysis.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Baseline 9000 Total Hydrocarbons Analyzer
$8,499.99
Quantity: 1
Claim Your Seller Account
Baseline 9000 Total Hydrocarbons Analyzer
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

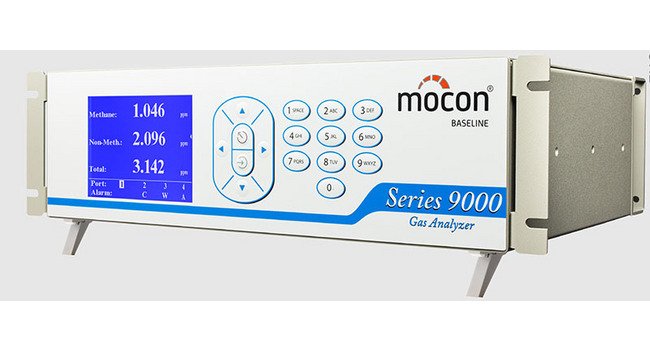

The Baseline 9000 THA Total Hydrocarbons Analyzer is a cutting-edge instrument designed for precise hydrocarbon analysis. Featuring automatic FID ignition, user-definable detection ranges, and multilevel concentration alarms, this analyzer ensures accurate results from parts-per-billion to percentage levels. With customizable output options, internal sampling capabilities, and easy calibration methods, it caters to a wide range of industrial applications such as beverage-grade CO2 analysis, fenceline monitoring, and VOC emission monitoring. The Baseline 9000 guarantees optimal performance, reliability, and compliance with stringent procurement standards.
Product Specifications
Additional Information Additional Information
All instrument parameters are reported clearly and continually refreshed on a large, graphical LCD display. Using analog, digital, and logic output communication capabilities, analytical information from the analyzer can be acquired using an external PC and a simple communications program such as Windows® HyperTerminal or the analyzer can output binary or ASCII formats directly to a data acquisition system or PLC. Every Baseline® 9000 analyzer includes MOCONâs free PC utility 9000 Keeper used for storing and uploading multiple methods, as well as sending configuration settings, directly to the analyzer.
Applications Applications
Beverage-grade CO2 analysisFenceline (perimeter) monitoringScrubber and oxidizer efficiency Carbon bed breakthrough detectionContaminant analysis Well Logging Industrial Hygiene & safetyLEL monitoringBeverage-grade CO2 analysisUltra-Pure gasesWell LoggingIndustrial hygiene & safetyLEL monitoringVOC continuous emission monitoring systemsAmbient air quality monitoring systemAirborne molecular contaminationCompliance monitoring for EPA Method 25A Continuous emission stack monitoringVehicle emission
Configuration Configuration
Benchtop or 19" (48.3 cm) Rack-Mount, 3U
Features Features
Automatic FID ignitionAutomatic calibration at user-defined intervalsInternal multi-point sampling optionElectronic back-pressure regulator with sample bypass systemFlow Guard Control of fuel, air, and sampleGraphic LCD display with easy to use menuBenchtop or rack-mountableSingle or multi-point samplingCustomizable Ethernet or serial outputProgrammable analog output rangesProgrammable relays for iagnostics, concentration, alarms, and events
Specifications Accuracy
+1% full-scale response.
Specifications Accurate Detection
User definable rangesAutomatic FID ignition
Specifications Alarms
Multilevel concentration and fault alarms, audible and visual.
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Calibration
Manual Calibration | Programmable Automatic
Specifications Current
1 A
Specifications Depth
16.25 in | 41.28 cm
Specifications Detector
Flame Ionization Detector (FID)
Specifications Display Length
4.5 in | 11.43 cm
Specifications Display Type
Graphical Liquid Crystal Display (LCD)
Specifications Display Width
3.4 in | 8.64 cm
Specifications Drift Span
+1% full-scale, 24 hours.
Specifications Drift Zero
+0.025% full-scale over 24 hours.
Specifications Frequency
50 Hz | 60 Hz
Specifications Gas Generators
Hydrogen GeneratorZero Air generators
Specifications Height
5.25 in | 13.02 cm
Specifications Non Condensing Operating Humidity
0 to 95 %
Specifications Operating Temperature
32 to 104 ºF | 0 to 40 ºC
Specifications Outputs
LAN/Ethernet, RS-232Analog, 1 programmable 0-20mA/4-20mA isolated outputRelays, 5 programmable From A relays rated to 3A at 230VAC(Optional)3 additional analogs9 additional relays
Specifications Prevenitive Maintenance Kit
Includes all parts potentially needed on-hand
Specifications Ranges Ch4
User definable based upon calibration:Very Low - 0.01 ppm to 200 ppmLow - 0.1 ppm to 2,000 ppmMedium - 0.3 ppm to 20,000 ppmHigh - 0.003% ppm to 100% ppm
Specifications Response Time
T90 < 5 s
Specifications Sampling
Internal single or multi-point, (pump optional)
Specifications Service And Support Options
Start-up and training, 1 day onsite
Specifications Software
9000 Keeper provided for method switching via PC
Specifications Support Gas Requirement
UHP Hydrogen (H2) 30 cc/minZero air - 175 cc/minSpan gas - methane is typical
Specifications Weight
<20 lb | 9.07 kg
Specifications Width
19 in | 48.26 cm
