BASELINE VOC-TRAQ II 2 ppm VOC Detector
BASELINE VOC-TRAQ II 2 ppm VOC Detector
SKU:PRO-5aaac2
Cutting-edge VOC detector for precise monitoring in various environments.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
BASELINE VOC-TRAQ II 2 ppm VOC Detector
$699.99
Quantity: 1
Claim Your Seller Account
BASELINE VOC-TRAQ II 2 ppm VOC Detector
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BASELINE® VOC-TRAQ® II 2 ppm Range Total Volatile Organic Compound Detector is a cutting-edge solution for monitoring VOCs in various environments. This detector is equipped with a user-replaceable Baseline piD-TECH® eVx™ shielded photoionization detector, ensuring accurate and reliable readings. Its compact design, operating temperature range of -20 to 60 °C, and internal memory storing up to 36,000 readings make it ideal for cleanrooms, work environments, IAQ consultation, leak detection, and more. The programmable alarm levels, three-color LED concentration display, and easy setup and calibration further enhance its usability, while the optional accessories like the calibration cap and carrying case provide additional convenience.
Product Specifications
Additional Information Additional Information

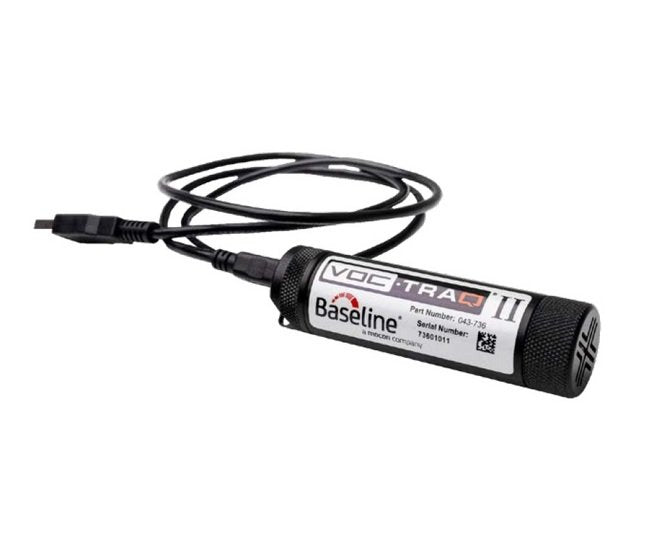

The VOC-TRAQ® consists of a cylindrical housing equipped with a mini-B USB port. The PID and associated electronic circuits are located inside the housing. Slotted openings in the cap serve as an entrance for target gases.The VOC-TRAQ® Flow Cell incorporates the Baseline® VOC-TRAQ® II with a flow through housing, enabling total volatile organic compound (TVOC) measurement with an inlet and outlet flow path for remote sample delivery. This unit allows for controlled sample delivery when used in conjunction with a pressurized source or pump.The VOC-TRAQ® software is compatible with Windows® based PCâs or in a stand-alone mode using an external USB power supply. Internal memory allows it to store up to 36,000 sample readings at user selectable time intervals. Includes programmable alarm levels with graduated audible signal that is proportional to the VOC concentration detected. A three-color LED displays concentration alarms.
Features And Benefits Features And Benefits
Easy to useCompact designBroad range of VOC detection capabilitiesSimple setup and calibrationProgrammable alarm levels with:LED and audible alarm indicationStores up to 36,000 sample readingsPC with Windows® OS compatible
Included Accessories Included Accessories
USB cable, 2.0 to mini-BVOC-TRAQ® PC software
Operating Specifications Accuracy
+ 3% of reading, with constant temperature and pressure
Operating Specifications Calibration
Software controlled
Operating Specifications Computer Requirement
Microsoft® Windows® 10 / 8 / 7 / Vista⢠PC or equivalent via USB, 2.0 or greater
Operating Specifications Diameter
1 in | 2.5 cm
Operating Specifications Gases Monitored
Volatile Organic Compounds (VOCâs) with ionization potentials (IP) of 10.6 eV Contact MOCON® for complete ionization potential list.
Operating Specifications Humidity Quenching Effect At 90 Percent
< 15 %
Operating Specifications Humidity Response At 90 Percent Relativ
<1 %
Operating Specifications Internal Memory
2 Mb EEPROM memory stores up to 36,000 readings
Operating Specifications Lamp Energy
10.6 eV
Operating Specifications Length
3.6 in | 9.1 cm
Operating Specifications Non Condensing Operating Relative Humid
0 to 90 %
Operating Specifications Operating Temperature
-20 to 60 ºC | -4 to 140 ºF
Operating Specifications Output
Universal Serial Bus (USB)
Operating Specifications Power
USB 5 VDC power for operation [PC, wall connected USB power supply (5.0 VDC, 40 mA), or optional battery pack].
Operating Specifications Response Time
T 90:< 2 seconds (typical) green, purple, and red< 4 seconds (typical) yellow and blue
Operating Specifications Sample Frequency Interval
Programmable, user selectable sample interval frequency from 0.1 sec
Operating Specifications Sensor
User replaceable, Baseline piD-TECH® eVx⢠shielded photoionization detector.
Operating Specifications Warranty Period
18 m
Operating Specifications Weight
1.9 oz | 53.7 g
Optional Accessories Optional Accessories
P/N 043-126 - Device Stand (VOC-TRAQ® II Only)P/N 043-136 - Calibration Cap with Tube (VOC-TRAQ® II Only)P/N 043-189 - Carrying CaseP/N 043-271 - piD-TECH® eVx⢠Maintenance Kit
Specifications Color
Blue
Specifications Minimum Detectable Quantities Mdq
0.5 ppb
Specifications Range
2 ppm
Unlimited Applications Unlimited Applications
CleanroomsWork environmentsIAQ consultationLeak detectionEducational facilitiesResearch & development
