BASELINE® 9100 Gas Chromatograph for EtO, VOC, BTEX Analysis
BASELINE® 9100 Gas Chromatograph for EtO, VOC, BTEX Analysis
SKU:PRO-fc1dc4
Cutting-edge BASELINE® 9100 Gas Chromatograph for precise EtO, VOC, & BTEX analysis
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
BASELINE® 9100 Gas Chromatograph for EtO, VOC, BTEX Analysis
$14,999.99
Quantity: 1
Claim Your Seller Account
BASELINE® 9100 Gas Chromatograph for EtO, VOC, BTEX Analysis
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

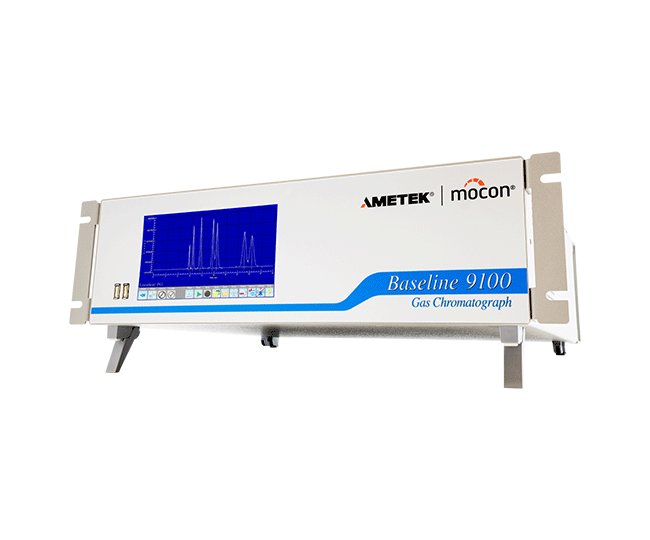

The BASELINE® 9100 Gas Chromatograph offers cutting-edge technology tailored for sub-part-per billion to percent level detection of various compounds in EtO, VOC, and BTEX analysis. Featuring a versatile platform with automatic control functions, a color LCD touchscreen, and multiple detector options, this instrument ensures precise and reliable results. Whether for environmental monitoring, industrial gas analysis, or leak detection, the BASELINE® 9100 is designed to meet the stringent requirements of institutional buyers while providing user-friendly operation and accurate detection capabilities.
Product Specifications
Accessories Accessories
Preventive Maintenance KitIncludes all parts potentially needed on-handBASELINE® 8990 Permeation CalibratorFor use with permeation tubes instead of cylindersBASELINE® 9130 Sample ConditionerDelivers a particulate and moisture free sampleBASELINE® 9150 Multipoint SamplerTo expand the 9100 GC sample points >8Gas GeneratorsHydrogen generatorsZero Air generatorsService & Support OptionsStart-up and training, 1 day onsite
Additional Features Additional Features
Lab quality analysis in a process or field GCUnlimited ApplicationsAccurate, interference free, detectionAutomatic calibration and electronic flow controlCustom analyses available
Additional Information Additional Information
The BASELINE® 9100 touchscreen LCD display and internal system software keep configuration and operation simple and the automatic calibration feature is ideal for unattended operation. The compact size and design make this unit suitable for field applications, allowing for either rack mount configuration or bench top use.A full suite of user configurable data collection, storage and outputs allow the GC to speak your language, your way. Users can configure up to 1 year of on-board storage of chromatograms, ASCII results via RS-232 or LAN, contact closure relays and 4-20 mA analog outputs, all independent of one another.
Applications Applications
Environmental MonitoringAMC in CleanroomsAir Quality MonitoringFugitive Emission MonitoringToxic Gas MonitoringIndoor Air QualityLeak DetectionOEM PID SensorsIndustrial Process Analysis & ControlBeverage Gas MonitoringIndustrial Gas Mixing ControlProcess Gas AnalysisSpecialty and Industrial Gas MonitoringSurface Logging Analysis
Electrical Requirements Alternating Current Ac Voltage
100 to 230 V
Electrical Requirements Current
2 A
Electrical Requirements Frequency
50 Hz | 60 Hz
Features And Benefits Features And Benefits
Automated Control Features FlowGuard control of fuel, air, and sample with automatic shut-offAutomatic FID ignitionElectronic back-pressure regulator with sample bypass systemAutomatic calibration at user-defined intervals Versatile Platform Color LCD display and touch screen with easy to use menuBenchtop or rack-mountableSingle or multi-point samplingEthernet and serial customizable outputProgrammable analog output rangesProgrammable relays for diagnostics, concentration, alarms, and events
Physical Specifications Depth
16.3 in | 41.40 cm
Physical Specifications Height
5.12 in | 13 cm
Physical Specifications Weight
<30 lb | 13.64 kg
Physical Specifications Width
19 in | 48.26 cm
Specifications Alarms
Multilevel concentration and fault alarms, audible and visual
Specifications Calibration
Automatic or manual using a dedicated standard
Specifications Calibration Methods
Gas cylinder, permeation calibrator, or response factors
Specifications Columns
Packed, micro-packed, or capillary specific to application
Specifications Configuration
Benchtop or 19" (48.3 cm) Rack-Mount, 3U
Specifications Connections
1/4" or 1/8" OD tube compression fitting or 1/8" legris
Specifications Detector
Selected by application:Flame Ionization (FID)Photoionization (PID)High-Sensitivity Photoionization (HS-PID)Thermal Conductivity (TCD)
Specifications Display
7" Color LCD Touchscreen
Specifications Non Condensing Operating Humidity
0 to 95 %
Specifications Operating Temperature
32 to 104 ºF | 0 to 40 ºC
Specifications Outputsinputs Optional
I/O Board: 6 digital inputs, 5 relays as contact closures, 1 analogAnalog Board: 4 or 8 configurable as 4-20mA or 0-20mARelay Board: 8 or 16 programmable contact closures
Specifications Outputsinputs Standard
2 USB Ports for | LAN/Ethernet | RS-232
Specifications Sampling
Single or multipoint (4 or 8 pt) internal samplerInternal pump optionalOptional external sampler (BASELINE® 9150) for >8 sample points
