BASELINE® Series Hydrocarbons and CO2 TCA Analyzer
BASELINE® Series Hydrocarbons and CO2 TCA Analyzer
SKU:PRO-f3874e
Accurate, reliable, and industry-approved continuous hydrocarbon analyzer for specialty gas producers. Features FID technology, user-definable ranges, and dual display output.
Regular price
$15,999.99
Regular price
Sale price
$15,999.99
Unit price
per
Initiate Order
BASELINE® Series Hydrocarbons and CO2 TCA Analyzer
$15,999.99
Quantity: 1
Claim Your Seller Account
BASELINE® Series Hydrocarbons and CO2 TCA Analyzer
$15,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

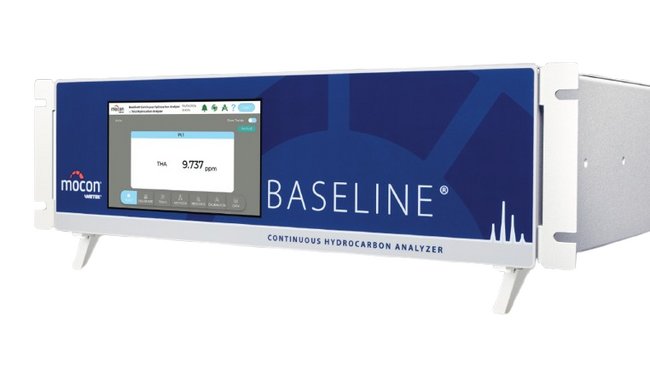

The BASELINE® Series Hydrocarbons and CO2 Total Carbon (TCA) Analyzer by AMETEK® | MOCON® is a high-performance continuous hydrocarbon analyzer designed for accurate trace level measurements in specialty gas production. Featuring a Flame Ionization Detector (FID) with Methanizer technology, user-definable ranges, multilevel alarms, and dual display output, this analyzer ensures reliable performance and effortless operation. Ideal for specialty gas producers requiring robust quality control, this instrument meets industry standards for precise gas measurement and modern interface usability.
Product Specifications
Accessories Accessories
Preventative Maintenance KitIncludes all necessary partsGas GeneratorsHydrogen generatorZero air generators Service & Support OptionsStart-up and training, one day onsite
Electrical Specifications Alternating Current Ac Voltage
100 to 240 V
Electrical Specifications Current
1 A
Electrical Specifications Frequency
50 Hz | 60 Hz
Features Features

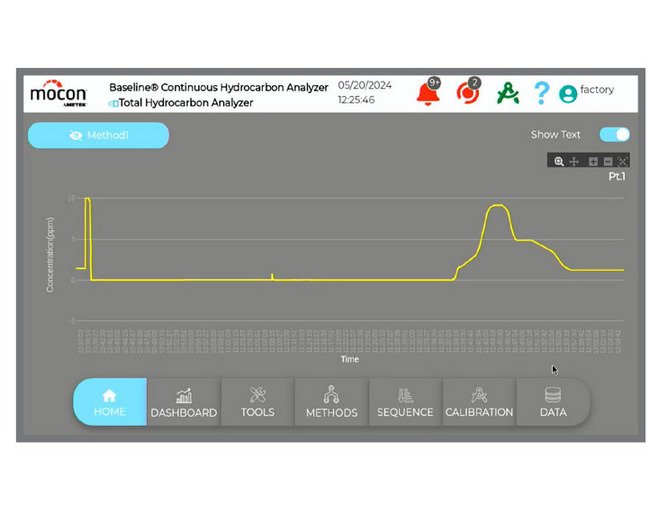

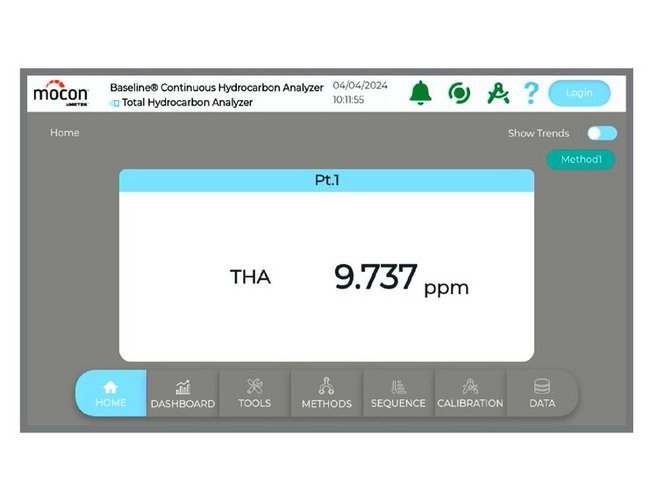

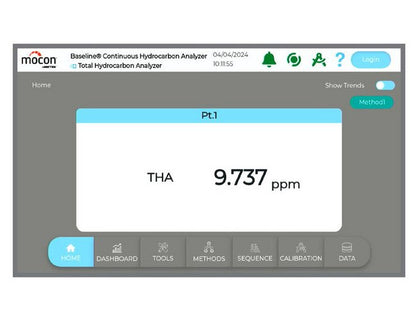

High Performance Effortless OperationIndustry-approved gas measurementReliable performance meets modern interfaceThe BASELINE® Series of Continuous Hydrocarbon Analyzers (CHAs) from AMETEK MOCON® are instruments designed for continuous ambient or process hydrocarbon gas measurement in environmental or industrial settings. All instruments in the series are powered by our high-quality Flame Ionization Detection (FID) sensor, which enables fast, accurate measurement and low detection limits with minimal interference.The CHA Series combines reliable, industry-proven technology with a modern interface and straightforward troubleshooting, allowing you to focus on the results.Operation designed for humansHigh-quality data isn't enough if the instrument is difficult to use. The CHA Series features an intuitive, streamlined interface. Instruments include a range of capabilities to help simplify your process, including easily read results, real-time graphing, the ability to review historical data without pausing instrument operation, and dual display output. The CHA Series also features networking capabilities for easier connectivity, data sharing within a network, and remote diagnostics.Fast and Accurate - FIDOur proprietary FlowGuard electronic control regulates the delivery of fuel, air and a small portion of the sample gas to the FID. During combustion, gases are ionized, measured and reported as a concentration. This method provides fast gas measurement with some of the highest accuracy levels on the market.Intuitive InterfaceModern GUI interfaceDual display capabilitySimple DiagnosticsOn-board data storageReal-time graphingSynchronous operation and data reviewHigh PerformanceLow detection levelsFast measurementAutomatic calibration
Physical Specifications Depth
16.25 in | 41.28 cm
Physical Specifications Height
5.25 in | 13.02 cm
Physical Specifications Weight
< 20 lb | 9.07 kg
Physical Specifications Width
19 in | 48.26 cm
Specifications Industry Focus
Specialty Gas
Technical Specifications Accuracy Repeatability
+1% full-scale
Technical Specifications Alarms
Multilevel concentration and fault alarms, audible and visual
Technical Specifications Calibration
Programmable automatic or manual calibration
Technical Specifications Configuration
Benchtop or 19" (48.3 cm) Rack-Mount, 3U
Technical Specifications Detector
Flame Ionization Detector (FID) with Methanizer
Technical Specifications Display Orientation
Diagonal
Technical Specifications Display Size
7 in | 17.8 cm
Technical Specifications Display Type
Graphical Touch Display
Technical Specifications Drift Span
+1% full-scale, 24 hours
Technical Specifications Drift Zero
+0.01% full-scale, 24 hours
Technical Specifications Non Condensing Operating Humidity
0 to 95 %
Technical Specifications Operating Temperature
32 to 104 ºF | 0 to 40 ºC
Technical Specifications Output
LAN/Ethernet, RS-485Optional outputsAnalog, programmable 0-20 mA/4-20 mA isolated output; Relays, 5 programmable From A relays rated to 3 A at 230 VACIf (a) is installed, 8 additional analog outputs and up to 16 additional relays can be added
Technical Specifications Ranges Ch4
User definable based upon calibration:Low - 0.1 ppm to 100 ppm
Technical Specifications Response Time
T90 < 30 seconds
Technical Specifications Sampling
Internal single point (pump optional)
Technical Specifications Support Gas Requirement
UHP Hydrogen (H2) 35 cc/minZero air - 175 cc/minSpan gas - methane w/ CO or CO2 typical
Unique Needs Unique Needs
Specialty gas producers require robust quality control and quality assurance to keep products consistent and customers happy. Accurate trace level measurements and a reliable instrument are vital to maintaining tight operations.
