Beaded Pipe System
Beaded Pipe System
SKU:BEA-dbdaeb
High-quality Beaded Pipe System for reliable fluid transportation in industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Beaded Pipe System
$89.99
Quantity: 1
Claim Your Seller Account
Beaded Pipe System
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Beaded Pipe System is a high-quality solution for fluid transportation, featuring a DN of 1 1/2 inches and a length of 24 inches. With a maximum working pressure of 75 psig and a maximum sudden differential temperature of 200°F, this system ensures reliable performance under demanding conditions. Its physical properties, including a coefficient of mean linear expansion of (3.3 ± 0.1) x 10-6 K-1, make it a durable and efficient choice for industrial applications. The beaded coupling design enhances ease of installation, and compliance with Federal procurement standards ensures suitability for government projects.
Product Specifications
Equivalent Lengths Feet By Pipe Size 45 Ell Miter
1.3
Equivalent Lengths Feet By Pipe Size 90 Ell Miter
7.5
Equivalent Lengths Feet By Pipe Size 90 Sweep
4
Equivalent Lengths Feet By Pipe Size Tee Run
2.5
Equivalent Lengths Feet By Pipe Size Tee Si
8.7
Equivalent Lengths Feet By Pipe Size Tee So
7.5
Note 0

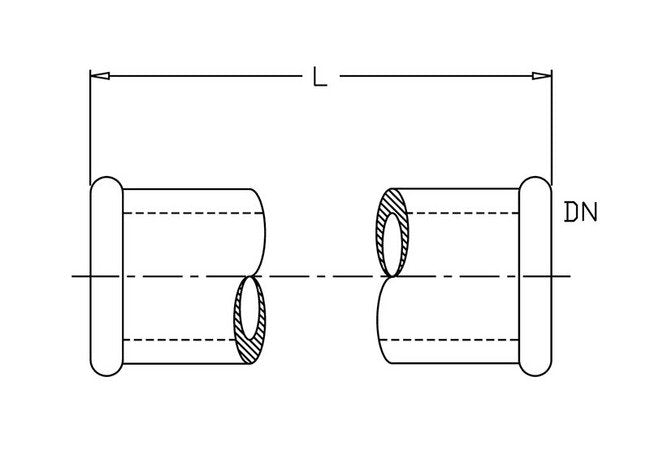

The length (L) of the beaded pressure systems is measured to the center of the beaded coupling.
Physical Properties Coefficient Of Mean Linear Expansion Between
(3.3 ± 0.1) x 10-6 K-1
Physical Properties Density At 20 C
2.23 g/cm³
Physical Properties Mean Specific Heat Capacity Between 20 And 2
0.98 kJ/kgK
Physical Properties Mean Thermal Conductivity Between 20 And 200
1.3 W/mK
Specifications Dn
1 1/2 in
Specifications Length
24 in
Specifications Maximum Sudden Differential Temperature
200 ºF
Specifications Maximum Working Pressure
75 psig
