Beaded Pipe System
Beaded Pipe System
SKU:BEA-f68af1
Reliable Beaded Pipe System for industrial fluid transportation. DN: 6 in, Length: 108 in, Max Working Pressure: 30 psig. Ensures durability and efficiency.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Beaded Pipe System
$499.99
Quantity: 1
Claim Your Seller Account
Beaded Pipe System
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Beaded Pipe System is a high-quality solution for fluid transportation in industrial settings. With specifications including a DN of 6 inches, a length of 108 inches, and a maximum working pressure of 30 psig, this system ensures reliable performance under demanding conditions. Its physical properties, such as a low coefficient of mean linear expansion and high thermal conductivity, guarantee efficiency and durability. The beaded coupling design provides easy installation and maintenance, meeting the stringent standards required for government and institutional procurement.
Product Specifications
Equivalent Lengths Feet By Pipe Size 45 Ell Miter
6
Equivalent Lengths Feet By Pipe Size 90 Ell Miter
30
Equivalent Lengths Feet By Pipe Size 90 Sweep
16
Equivalent Lengths Feet By Pipe Size Tee Run
10
Equivalent Lengths Feet By Pipe Size Tee Si
35
Equivalent Lengths Feet By Pipe Size Tee So
30
Note 0

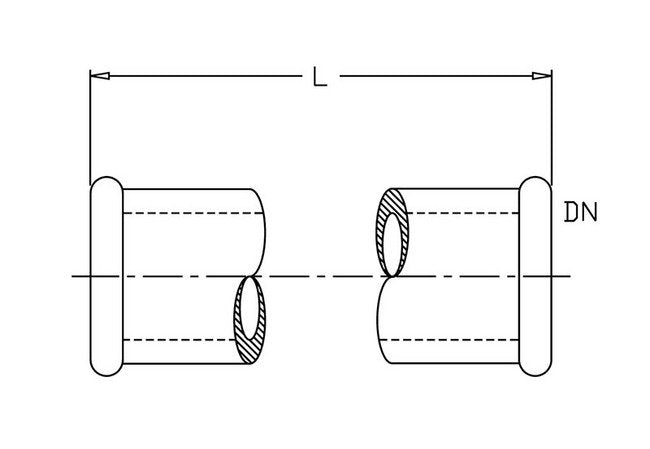

The length (L) of the beaded pressure systems is measured to the center of the beaded coupling.
Physical Properties Coefficient Of Mean Linear Expansion Between
(3.3 ± 0.1) x 10-6 K-1
Physical Properties Density At 20 C
2.23 g/cm³
Physical Properties Mean Specific Heat Capacity Between 20 And 2
0.98 kJ/kgK
Physical Properties Mean Thermal Conductivity Between 20 And 200
1.3 W/mK
Specifications Dn
6 in
Specifications Length
108 in
Specifications Maximum Sudden Differential Temperature
122 ºF
Specifications Maximum Working Pressure
30 psig
