Beam Expander 3X Magnification for 10.6µm | 1064nm Wavelengths
Beam Expander 3X Magnification for 10.6µm | 1064nm Wavelengths
SKU:STO-fda683
Versatile 3X magnification beam expander for 10.6µm | 1064nm wavelengths, precise and compact design.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Beam Expander 3X Magnification for 10.6µm | 1064nm Wavelengths
$349.99
Quantity: 1
Claim Your Seller Account
Beam Expander 3X Magnification for 10.6µm | 1064nm Wavelengths
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

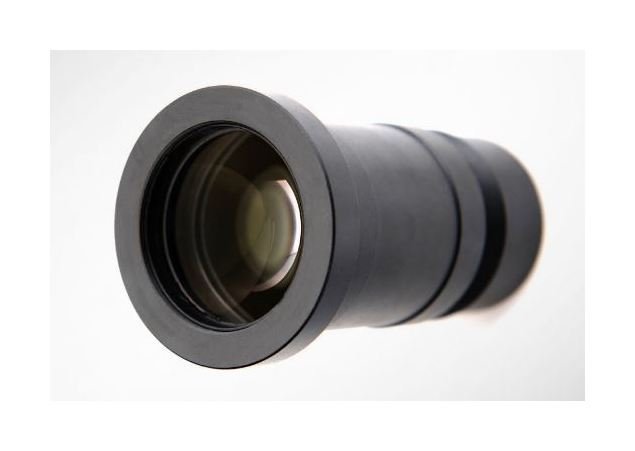

The SO-BE-150-050 Stock Beam Expander is designed to provide 3X magnification for laser beams at 10.6µm and 1064nm wavelengths. With a maximum pupil diameter of 5, it delivers a maximum outgoing spot diameter of 15, ensuring precision and accuracy in beam expansion. Featuring an interface of M22×0.75 and adjustable divergence angles of ±4 | ±5, this beam expander offers versatility and control. Its compact shell design with a maximum length of 58.47 and diameter of 29 makes it ideal for various industrial and research applications. Compliant with federal procurement standards and industry-specific certifications, this beam expander ensures quality and performance.
Product Specifications
Specifications Adjustable Divergence Angle
±4 | ±5
Specifications Design Wavelength
10.6 µm | 1064 nm
Specifications Interface
M22Ã0.75
Specifications Magnification
3Ã
Specifications Maximum Outgoing Spot Diameter
15
Specifications Maximum Pupil Diameter
5
Specifications Maximum Shell Diameter
25 | 28 | 29 | 40
Specifications Maximum Shell Length
58 | 58.47 | 61 | 68
