Beam Expander SO-BE-220-022

Beam Expander SO-BE-220-022

SKU:STO-6822bc

Enhance laser precision with the Beam Expander SO-BE-220-022, designed for accuracy and control in diverse applications.

Regular price $249.99
Regular price Sale price $249.99
Sale

Initiate Order

Beam Expander SO-BE-220-022

Beam Expander SO-BE-220-022

$249.99

Quantity: 1

Claim Your Seller Account

Beam Expander SO-BE-220-022

Beam Expander SO-BE-220-022

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

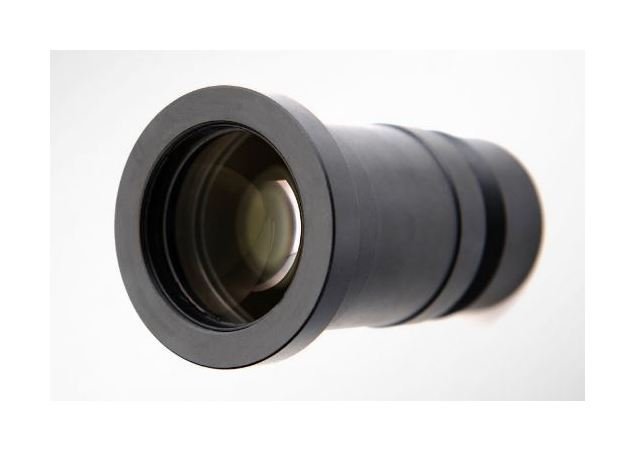

The Beam Expander SO-BE-220-022 is a cutting-edge optical device designed for precision laser applications. With a designated wavelength of 10.6 µm and a powerful 10x magnification, it ensures unparalleled accuracy and clarity in beam expansion. The maximum pupil diameter of 2.2 mm and outgoing spot diameter of 22 mm enable superior beam control. Featuring an M32x0.75 interface and an adjustable divergence angle of ±5°, this expander offers customizability to meet diverse needs. With a maximum shell length of 85 mm and diameter of 46 mm, it combines compactness with high performance, ideal for industrial and research settings. This product is engineered to meet stringent industry standards and regulations, ensuring reliability and efficiency in every application.

Product Specifications

Specifications Adjustable Divergence Angle
±5
Specifications Design Wavelength
10.6 µm
Specifications Interface
M32×0.75
Specifications Magnification
10×
Specifications Maximum Outgoing Spot Diameter
22
Specifications Maximum Pupil Diameter
2.2
Specifications Maximum Shell Diameter
46
Specifications Maximum Shell Length
85
