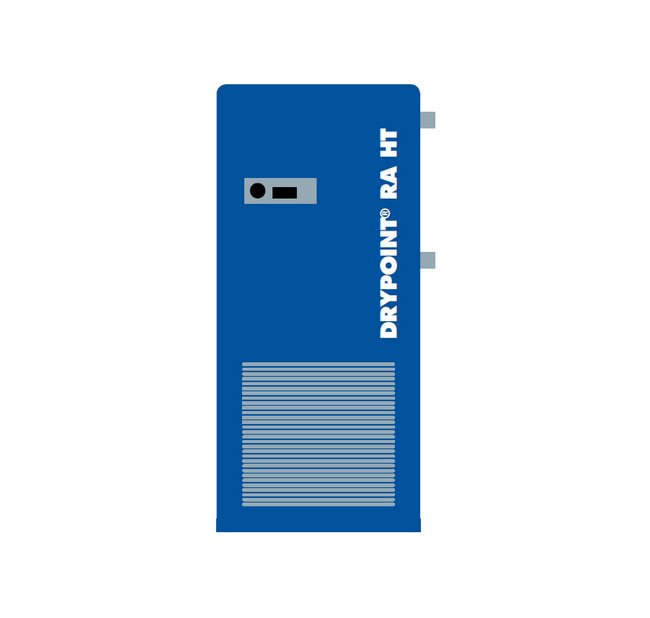

Beko Drypoint® RA High Temperature Refrigerant Air Dryer - 27 scfm
Beko Drypoint® RA High Temperature Refrigerant Air Dryer - 27 scfm
SKU:BEK-da8f39
Experience top-notch compressed air drying with Beko Drypoint® RA High Temperature Refrigerant Air Dryer - 27 scfm.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Beko Drypoint® RA High Temperature Refrigerant Air Dryer - 27 scfm
$1,999.99
Quantity: 1
Claim Your Seller Account
Beko Drypoint® RA High Temperature Refrigerant Air Dryer - 27 scfm
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Beko Drypoint® RA High Temperature Refrigerant Air Dryer is a top-of-the-line solution designed for maximum efficiency and reliability in compressed air treatment. With a flow rate of 27 scfm, it meets demanding industrial requirements with a standard outlet pressure dew point of 37 ºF. Featuring innovative technology such as the VarioFlow Hot Gas By-Pass and an integrated BEKOMAT® Drain, this dryer ensures stable dew points and maximum energy savings. The aluminum heat exchanger and optimized flow channels provide exceptional performance while maintaining a compact and maintenance-friendly design. Trust Beko for superior quality, efficiency, and German engineering excellence.
Product Specifications
Additional Information 0
Refrigerant Drying SystemsThe BEKO product family of compressed air refrigeration dryers provides users with several advanced features creating a balanced and efficient drying system. The unique VarioFlow technology of the hot gas by-pass valve, utilizes a special, gas charged capsule that operates independently of power or electronic support. Thus providing users with a 100% stable dew point, no maintenance, and zero freeze-up.The synergistic effect when combined with the standard BEKOMAT® results in a dryer that has a direct effect on reducing energy consumption and displays maximum respect for the environment because nearly every component can be recycled.This not only adds to the stability and reliability of the dryer, but transforms one of the most inefficient pieces of compressed air treatment equipment into an energy saving one.
Cycle Information 0

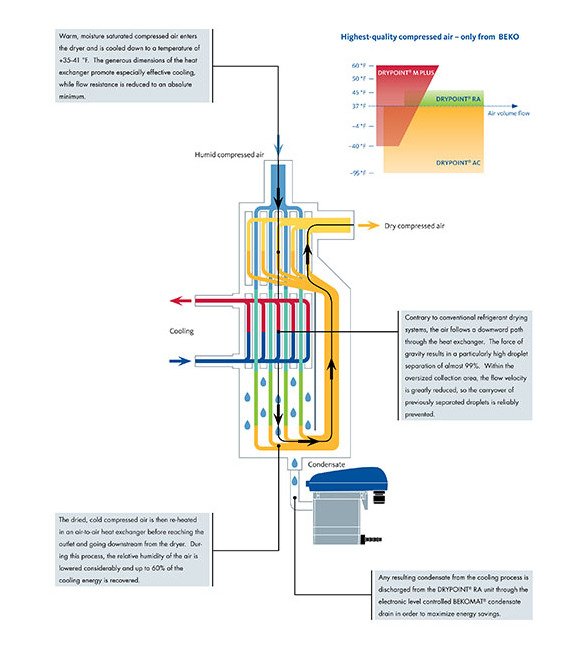

Warm, moisture saturated compressed air enters the dryer and is cooled down to a temperature of +35-41 ºF. The generous dimensions of the heat exchanger promote especially effective cooling, while flow resistance is reduced to an absolute minimum.The dried, cold compressed air is then re-heated in an air-to-air heat exchanger before reaching the outlet and going downstream from the dryer. During this process, the relative humidity of the air is lowered considerably and up to 60% of the cooling energy is recovered.Contrary to conventional refrigerant drying systems, the air follows a downward path through the heat exchanger. The force of gravity results in a particularly high droplet separation of almost 99%. Within the oversized collection area, the flow velocity is greatly reduced, so the carryover of previously separated droplets is reliably prevented.Any resulting condensate from the cooling process is discharged from the Drypoint® RA unit through the electronic level controlled BEKOMAT® condensate drain in order to maximize energy savings.
Features 0
High-Quality Compressed Air from BekoThe quality of your compressed air.ReliableThe highest level of operational reliability is guaranteed with every product that Beko manufactures.EfficientMaximum energy efficiency and conservation are guiding principles of every product design.EconomicProducts that provide the quickest return on investment in the industry with the least amount of risk.EffectiveGerman engineered with no compromises on quality.ExperienceMore than 25 years of industry leading experience stands behind our entire product offering.SolutionsYour single source for a range of performance compressed air products designed to work in synergy.
Model Information 0

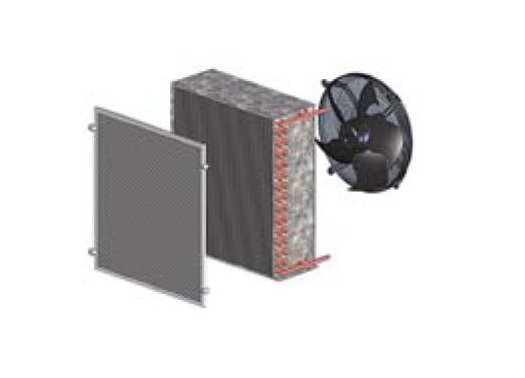

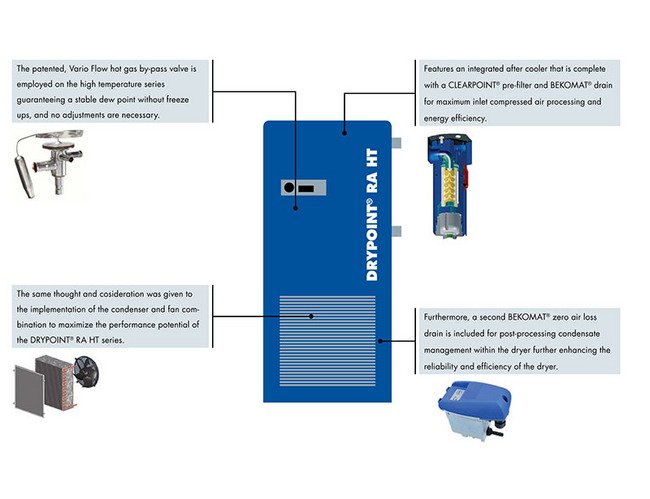

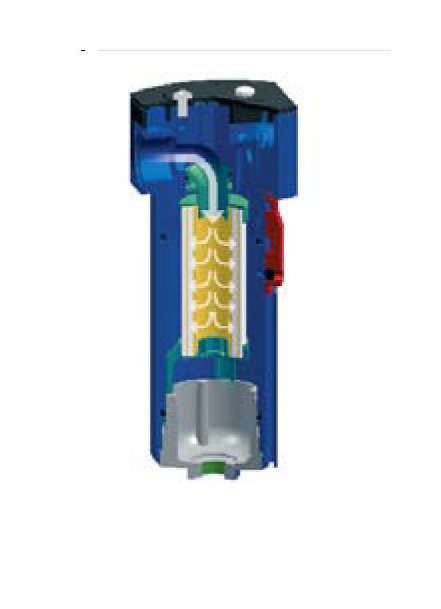

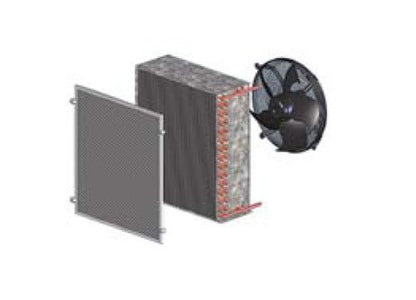

The patented, VarioFlow hot gas by-pass valve is employed on the high temperature series guaranteeing a stable dew point without freeze ups, and no adjustments are necessary.The same thought and consideration was given to the implementation of the condenser and fan combination to maximize the performance potential of the Drypoint® RA HT series.Features an integrated after cooler that is complete with a CLEARPOINT® pre-filter and BEKOMAT® drain for maximum inlet compressed air processing and energy efficiency.Furthermore, a second BEKOMAT® zero air loss drain is included for post-processing condensate management within the dryer further enhancing the reliability and efficiency of the dryer.
Note 0
Compressed air treatment and condensate technology. The complete program. Worldwide.Subject to technical changes without prior notice; the information provided does not represent characteristics of state within the meaning of the German Civil Code (BGB).
Product Line Features Aluminum Heat Exchanger
Vertical profile allows for minimum pressure drop and self cleans using gravitational force.

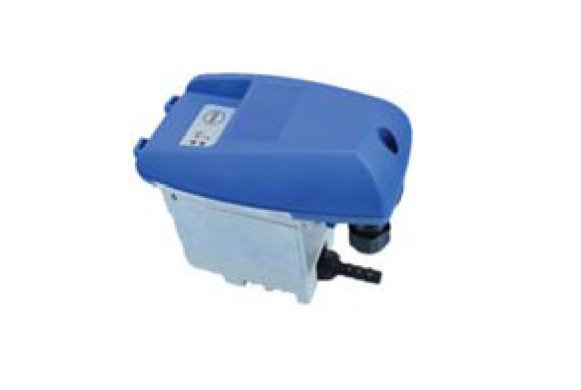

Product Line Features Integrated Bekomat Drain
Reliable condensate discharge and maximum energy savings.
Product Line Features Maintenance Friendly
The compact design and open frame provides easy access to all components.
Product Line Features Optimized Flow Channels
Large cross sections provide energy efficiency by reducing pressure drop and power output.

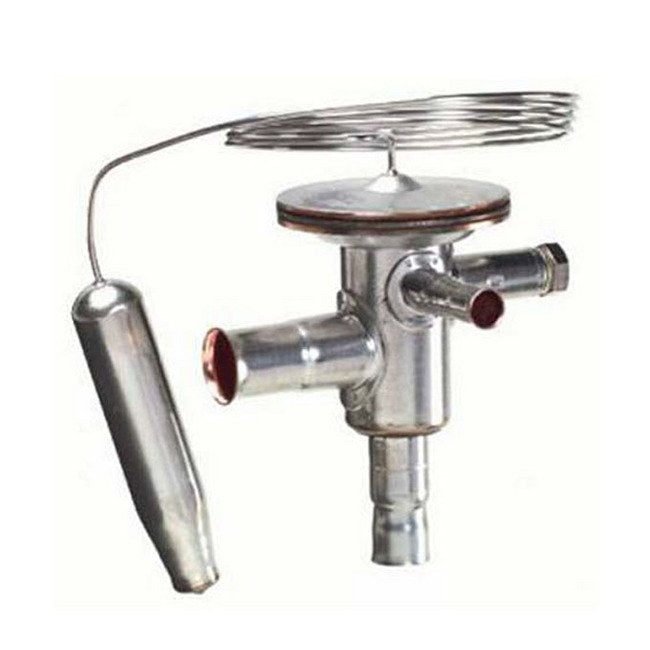

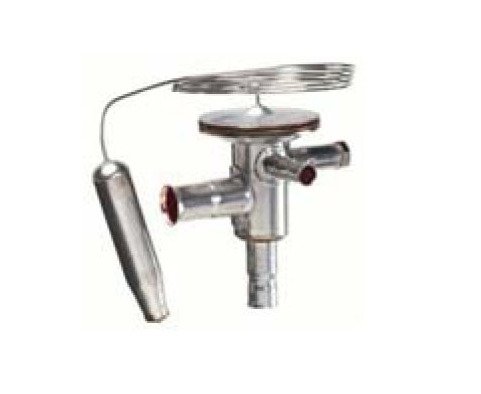

Product Line Features Varioflow Hot Gas By Pass
Stable dew point regardless of varying operating conditions - patented design.
Specifications Brand
Beko | Drypoint®
Specifications Cooling Energy Recovered
0 to 60 %
Specifications Cooling Temperature Range
+35 to 41 ºF
Specifications Industry Standards
ISO 9001:2008
Specifications Maximum Air Ambient Temperature
122 ºF
Specifications Maximum Air Inlet Temperature
210 ºF
Specifications Maximum Inlet Pressure
200 psig
Specifications Minimum Air Ambient Temperature
35 ºF
Specifications Recommended Post Filtration
0.01 µm
Specifications Required Pre Filtration
Included
Specifications Standard Outlet Pressure Dew Point
37 ºF
Technical Data Connection Size
1/2 in. NPT-F

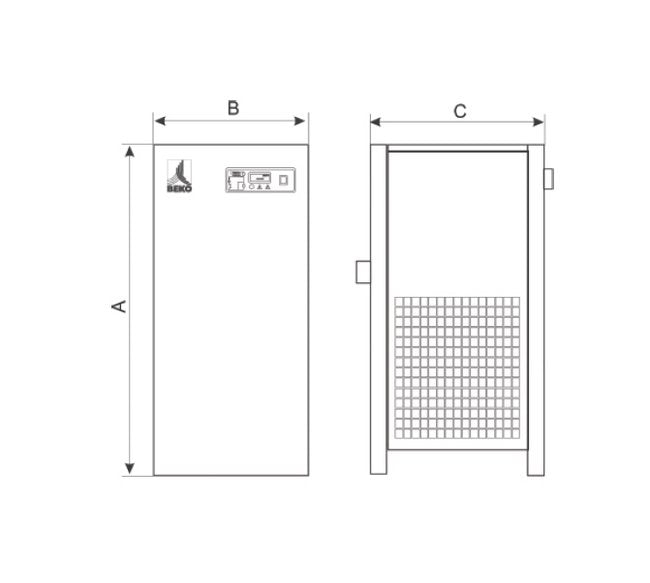

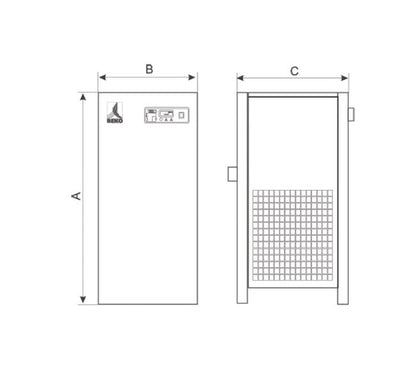

Technical Data Dimension A
25 in
Technical Data Dimension B
17 in
Technical Data Dimension C
16 in
Technical Data Flow Rate At 37 F Outlet
20 scfm
Technical Data Flow Rate At 50 F Outlet
27 scfm
Technical Data Operating Voltage
115 V
Technical Data Phase
1
Technical Data Weight
82 lb
Warranty 0
To achieve maximum performance, protect the dryer, and in order to obtain the Full 2-year Warranty, the installation of a CLEARPOINT® fine filter Type-F (1 um) or finer at the inlet is required. All annual maintenance, including filter element changes, must be carried out in accordance with the manual in order to maintain the warranty on the dryer. This is applicable to all model sizes and configurations.
