Beko Drypoint® RA Refrigerant Air Dryer - Premium Series 3.77 psid Differential Pressure Drop
Beko Drypoint® RA Refrigerant Air Dryer - Premium Series 3.77 psid Differential Pressure Drop
SKU:BEK-176a28
Beko Drypoint® RA Refrigerant Air Dryer - Premium Series, Superior protection, Energy-efficient, German-engineered.
Regular price
$3,899.99
Regular price
Sale price
$3,899.99
Unit price
per
Initiate Order
Beko Drypoint® RA Refrigerant Air Dryer - Premium Series 3.77 psid Differential Pressure Drop
$3,899.99
Quantity: 1
Claim Your Seller Account
Beko Drypoint® RA Refrigerant Air Dryer - Premium Series 3.77 psid Differential Pressure Drop
$3,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

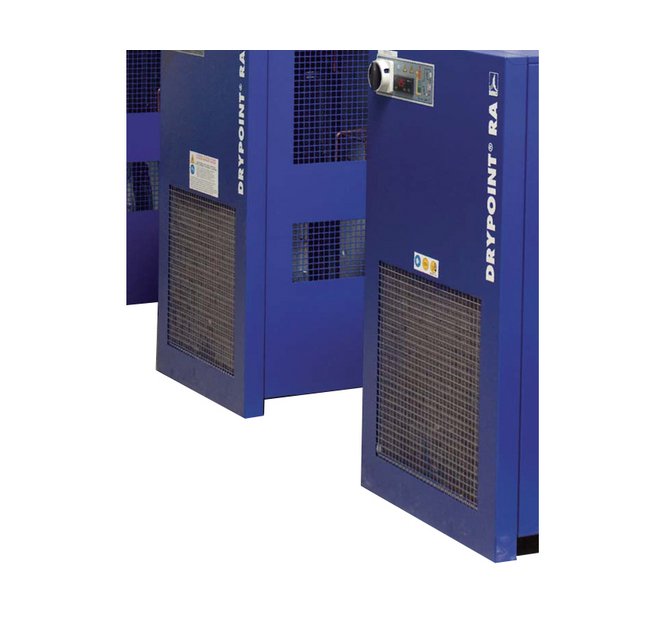

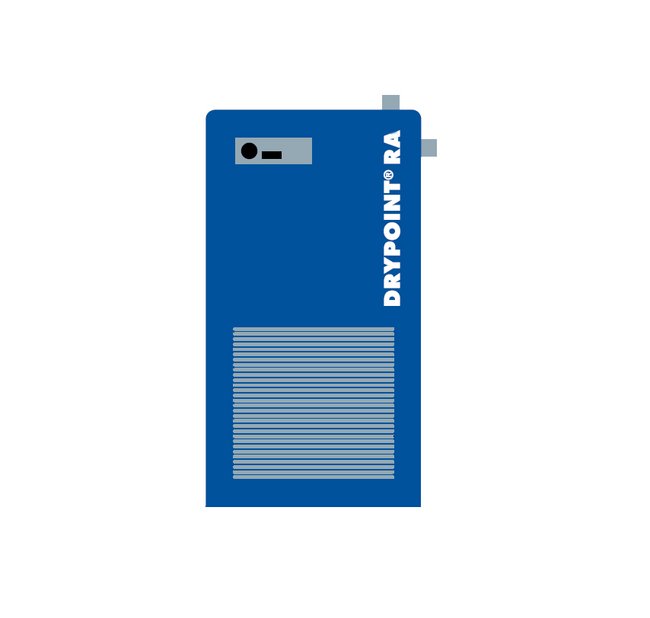

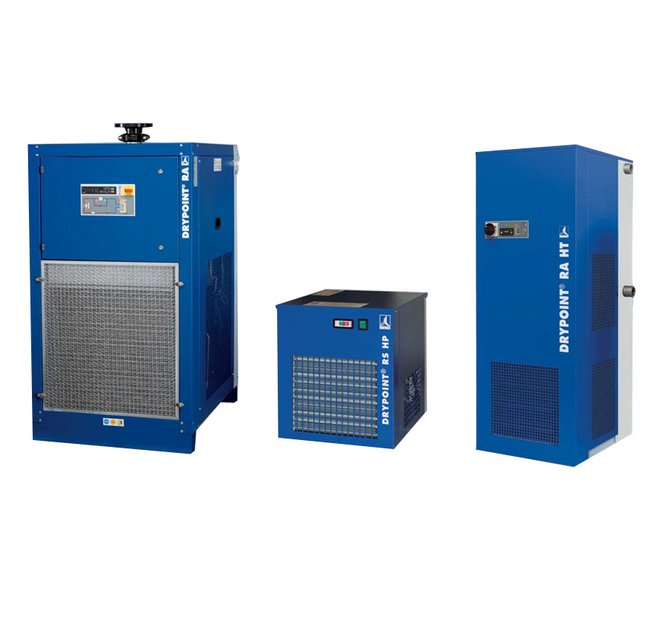

The Beko Drypoint® RA Refrigerant Air Dryer offers superior protection with internal fan and compressor overload safeguards, high and low pressure switches, phase protection, and more. With a Standard Outlet Pressure Dew Point of 38ºF, maximum Inlet Pressure of 200 psig, and Flow Rate of 2500 scfm, this German-engineered dryer ensures reliable, efficient, and economic operation. Featuring an Aluminum Heat Exchanger, Integrated BEKOMAT® Drain, VarioFlow Hot Gas By-Pass, and maintenance-friendly design, this dryer delivers high-quality compressed air with stability, energy efficiency, and eco-friendliness.
Product Specifications
Additional Information 0
Refrigerant Drying SystemsThe BEKO product family of compressed air refrigeration dryers provides users with several advanced features creating a balanced and efficient drying system. The unique VarioFlow technology of the hot gas by-pass valve, utilizes a special, gas charged capsule that operates independently of power or electronic support. Thus providing users with a 100% stable dew point, no maintenance, and zero freeze-up.The synergistic effect when combined with the standard BEKOMAT® results in a dryer that has a direct effect on reducing energy consumption and displays maximum respect for the environment because nearly every component can be recycled.This not only adds to the stability and reliability of the dryer, but transforms one of the most inefficient pieces of compressed air treatment equipment into an energy saving one.

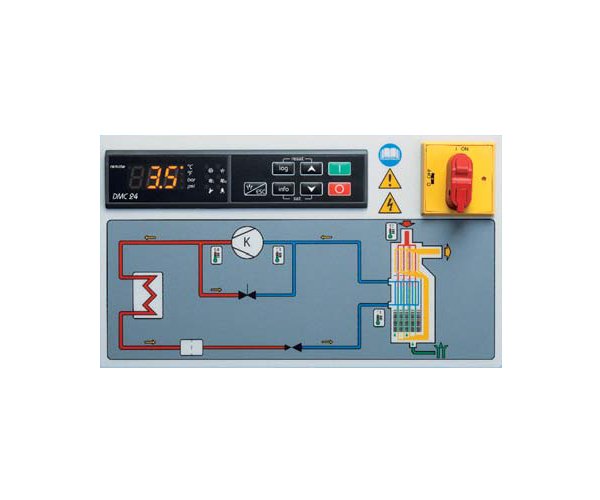

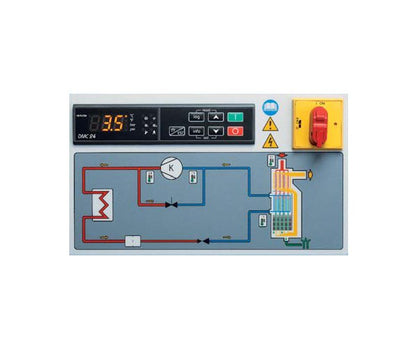

Controller Types Dmc 24 Controller
Includes all of the above plus . . .Fully programmable from the front panelComplete LED status indicationWorking hours meteringHours until next service meteringAdvanced Service Warning functionAdvanced Alarm Management functionPC or control system connectivity
Cycle Information 0

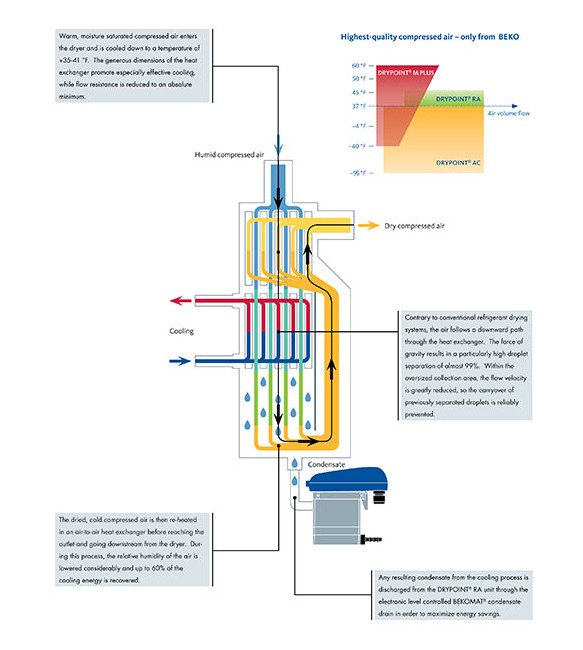

Warm, moisture saturated compressed air enters the dryer and is cooled down to a temperature of +35-41 ºF. The generous dimensions of the heat exchanger promote especially effective cooling, while flow resistance is reduced to an absolute minimum.The dried, cold compressed air is then re-heated in an air-to-air heat exchanger before reaching the outlet and going downstream from the dryer. During this process, the relative humidity of the air is lowered considerably and up to 60% of the cooling energy is recovered.Contrary to conventional refrigerant drying systems, the air follows a downward path through the heat exchanger. The force of gravity results in a particularly high droplet separation of almost 99%. Within the oversized collection area, the flow velocity is greatly reduced, so the carryover of previously separated droplets is reliably prevented.Any resulting condensate from the cooling process is discharged from the Drypoint® RA unit through the electronic level controlled BEKOMAT® condensate drain in order to maximize energy savings.
Features 0

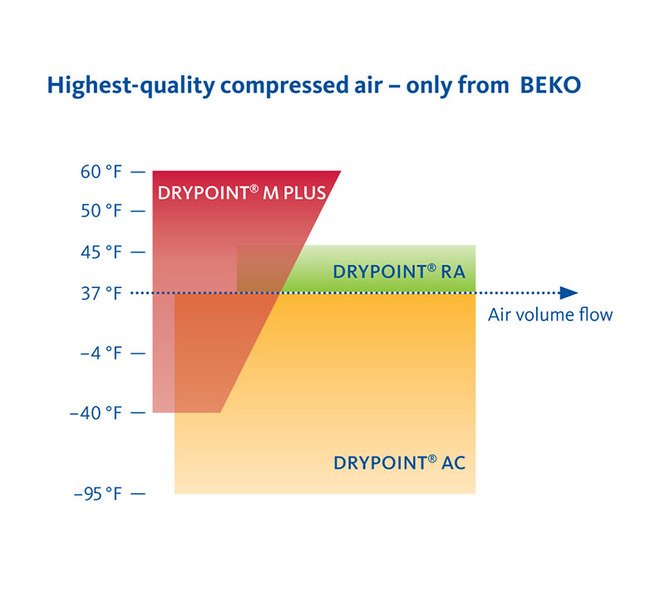

High-Quality Compressed Air from BekoThe quality of your compressed air.ReliableThe highest level of operational reliability is guaranteed with every product that Beko manufactures.EfficientMaximum energy efficiency and conservation are guiding principles of every product design.EconomicProducts that provide the quickest return on investment in the industry with the least amount of risk.EffectiveGerman engineered with no compromises on quality.ExperienceMore than 25 years of industry leading experience stands behind our entire product offering.SolutionsYour single source for a range of performance compressed air products designed to work in synergy.
Model Information 0

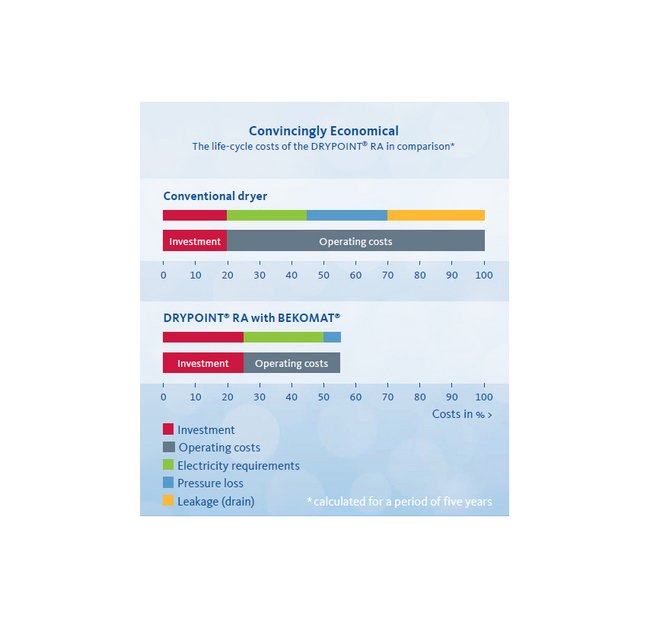

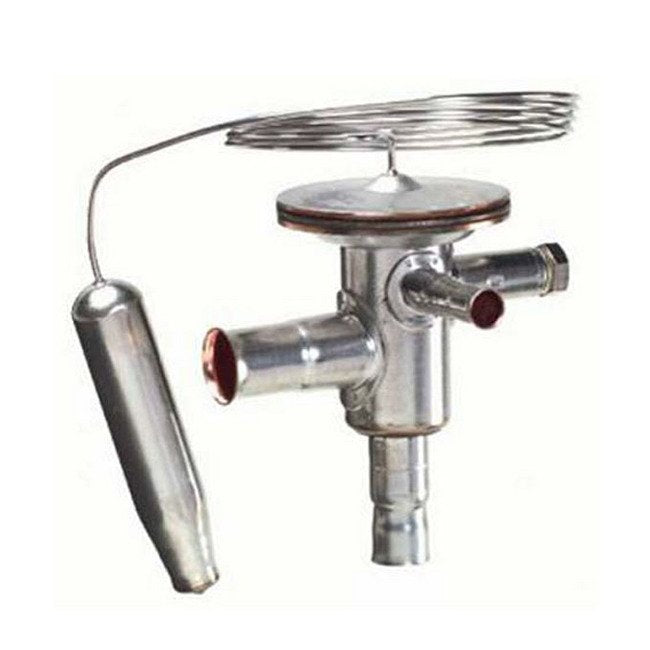

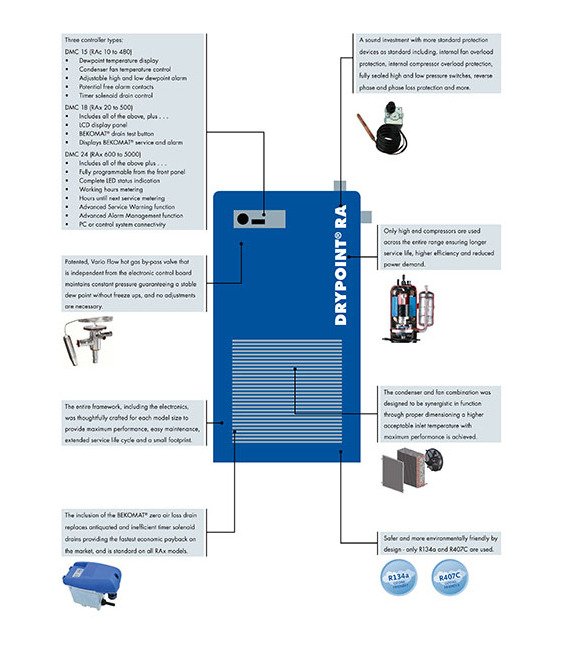

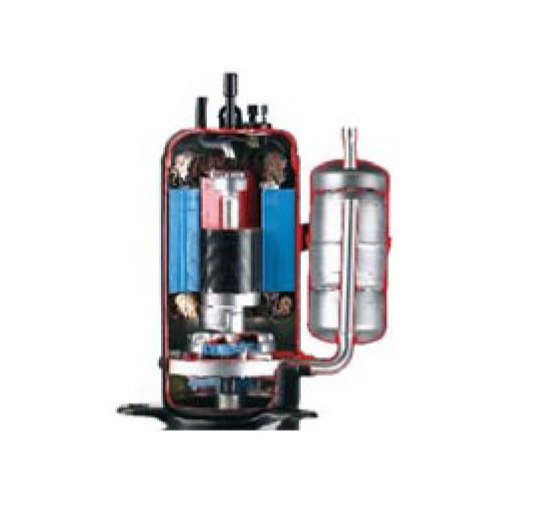

Patented, VarioFlow hot gas by-pass valve that is independent from the electronic control board maintains constant pressure guaranteeing a stable dew point without freeze ups, and no adjustments are necessary.The entire framework, including the electronics, was thoughtfully crafted for each model size to provide maximum performance, easy maintenance, extended service life cycle and a small footprint.The inclusion of the BEKOMAT® zero air loss drain replaces antiquated and inefficient timer solenoid drains providing the fastest economic payback on the market, and is standard on all RAx models.Only high end compressors are used across the entire range ensuring longer service life, higher efficiency and reduced power demand.The condenser and fan combination was designed to be synergistic in function through proper dimensioning a higher acceptable inlet temperature with maximum performance is achieved.Safer and more environmentally friendly by design - only R134a and R407C are used.
Note 0
Compressed air treatment and condensate technology. The complete program. Worldwide.Subject to technical changes without prior notice; the information provided does not represent characteristics of state within the meaning of the German Civil Code (BGB).
Product Line Features Aluminum Heat Exchanger
Vertical profile allows for minimum pressure drop and self cleans using gravitational force.

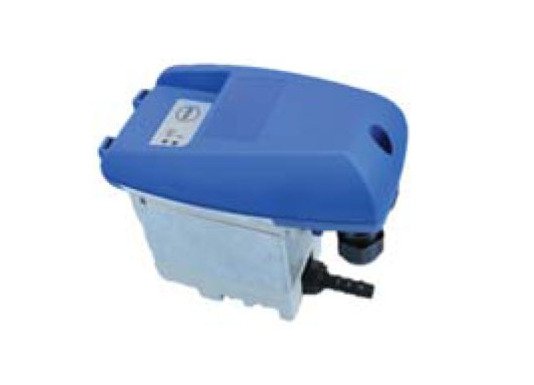

Product Line Features Integrated Bekomat Drain
Reliable condensate discharge and maximum energy savings.
Product Line Features Maintenance Friendly
The compact design and open frame provides easy access to all components.

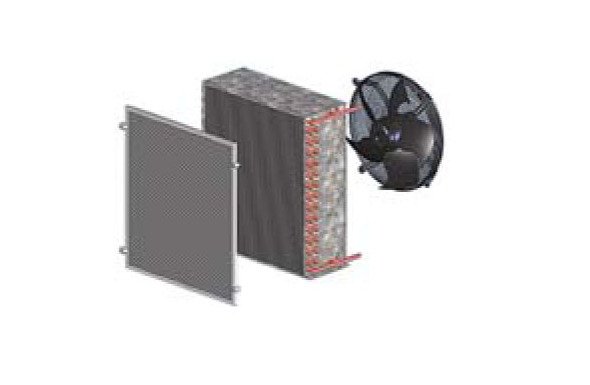

Product Line Features Optimized Flow Channels
Large cross sections provide energy efficiency by reducing pressure drop and power output.

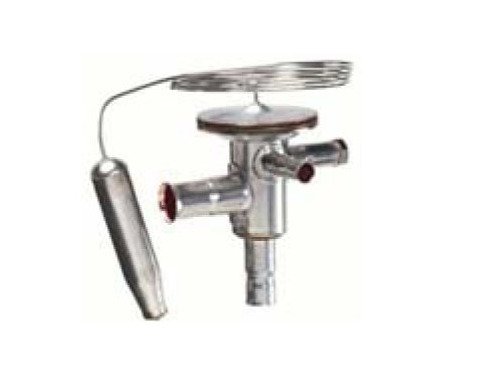

Product Line Features Varioflow Hot Gas By Pass
Stable dew point regardless of varying operating conditions - patented design.
Specifications Available Dryer Options
Anti-Corrosion Treatment | Dryer By-Pass | Sea Water Cooled | Water Cooled
Specifications Brand
Beko | Drypoint®
Specifications Cooling Energy Recovered
0 to 60 %
Specifications Cooling Temperature Range
+35 to 41 ºF
Specifications Industry Standards
ISO 9001:2008
Specifications Maximum Air Ambient Temperature
120 ºF
Specifications Maximum Air Inlet Temperature
160 ºF
Specifications Maximum Inlet Pressure
200 psig
Specifications Minimum Air Ambient Temperature
34 ºF
Specifications Recommended Post Filtration
0.01 µm
Specifications Required Pre Filtration
1.0 µm
Specifications Standard Outlet Pressure Dew Point
38 ºF
Technical Data Connection Size
4 in. Flange

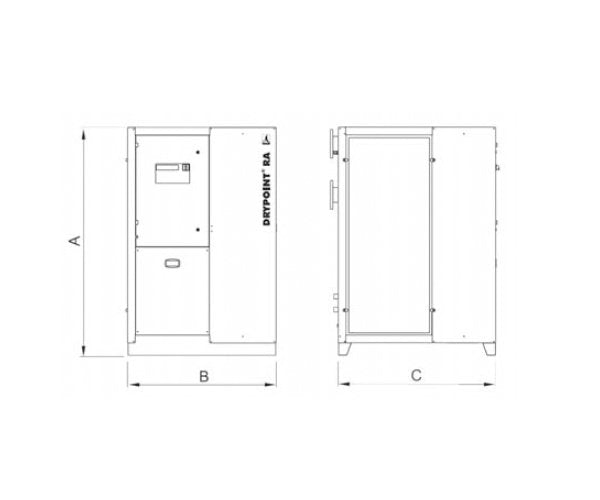

Technical Data Dimension A
45 in
Technical Data Dimension B
47 in
Technical Data Dimension C
69 in
Technical Data Flow Rate
2500 scfm
Technical Data Phase
3
Technical Data Pressure Drop
3.77 psid
Technical Data Required Pre Filter
L102FDB
Technical Data Standard Voltage
460 V
Technical Data Weight
1349 lb
Warranty 0
To achieve maximum performance, protect the dryer, and in order to obtain the Full 2-year Warranty, the installation of a CLEARPOINT® fine filter Type-F (1 um) or finer at the inlet is required. All annual maintenance, including filter element changes, must be carried out in accordance with the manual in order to maintain the warranty on the dryer. This is applicable to all model sizes and configurations.
