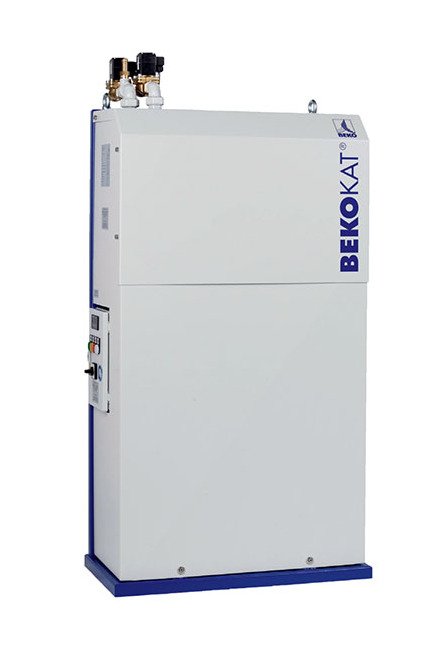

BEKOKAT® CC 070 Catalytic Convertor for Clean Air

BEKOKAT® CC 070 Catalytic Convertor for Clean Air

CLE-199e8b

Achieve pristine, oil-free and germ-free compressed air with BEKOKAT® CC 070 Catalytic Convertor. ISO 8573-1, Class 1 certified for top-quality air treatment.

$7,999.00
$7,999.00
Sale

Initiate Order

BEKOKAT® CC 070 Catalytic Convertor for Clean Air

BEKOKAT® CC 070 Catalytic Convertor for Clean Air

$7,999.00

Quantity: 1

Claim Your Seller Account

BEKOKAT® CC 070 Catalytic Convertor for Clean Air

BEKOKAT® CC 070 Catalytic Convertor for Clean Air

$7,999.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

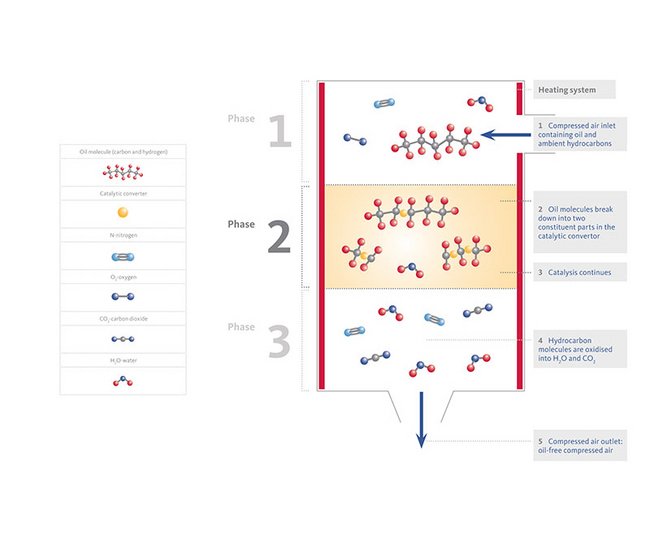

The BEKOKAT® CC 070 Catalytic Convertor is a state-of-the-art condensate management system designed specifically for the total oxidation of hydrocarbons and bacteria in compressed air. It ensures oil-free air independent of ambient conditions, producing germ-free and sterile air meeting ISO 8573-1, Class 1 certification. With an attainable residual oil level of ≤ 0.003 mg/m3, this catalytic converter offers maximum operating pressure of 232 psig and a maintenance interval that guarantees optimal performance and efficiency.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Financing Approve Payments
Finance with Approve Payments
Specifications Attainable Oil Residue
≥ 0.003 mg/m³

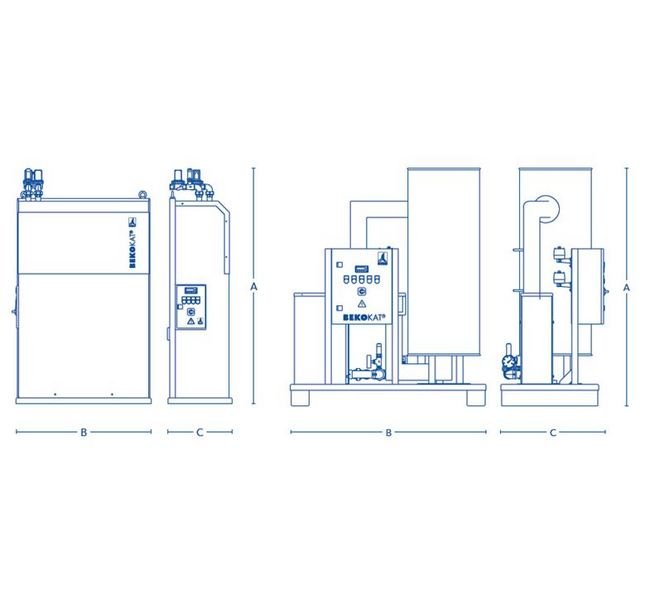

Specifications Dimension A
67.7 in
Specifications Dimension B
37.4 in
Specifications Dimension C
17.7 in
Specifications Flow Rate
70 scfm
Specifications Installed Power
1.64 kW
Specifications Maximum Operating Pressure
232 psig
Specifications Minimum Operating Temperature
+41 ºF
Specifications Pipe Size Npt
1 in
Specifications Power Consumption Full Load Kw
0.86 kW
Specifications Power Consumption Stand By Kw
0.1115 kW
Specifications Standard Ac Voltage
230 V at 1 phase | 460 V at 3 phase
Specifications Warranty
5 years
Specifications Weight
440 lb
Standard Features And Benefits 0
Oil Free Compressed Air:Continuously produced from any compressor type down to 0.003 mg/m3.Independent of Conditions:Stable residual oil content throughout the year, independent from any ambient condition.Environmentally Friendly:Produces oil free condensate of the highest quality.Partial Load Operation:Maximum process reliability regardless of production fluctuations.Responsive Controls:Ensures machine safety and operational accuracy.
Technical Specifications Maximum Operating Temperature
+383 ºF
