BEKOKAT® CC 425 Catalytic Convertor for Clean Air Treatment
BEKOKAT® CC 425 Catalytic Convertor for Clean Air Treatment
SKU:CLE-d12be4
BEKOKAT® CC 425: Top-tier catalytic converter for clean, oil-free compressed air in institutional settings. ISO 8573-1 Class 1 certified.
Regular price
$8,769.99
Regular price
Sale price
$8,769.99
Unit price
per
Initiate Order
BEKOKAT® CC 425 Catalytic Convertor for Clean Air Treatment
$8,769.99
Quantity: 1
Claim Your Seller Account
BEKOKAT® CC 425 Catalytic Convertor for Clean Air Treatment
$8,769.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

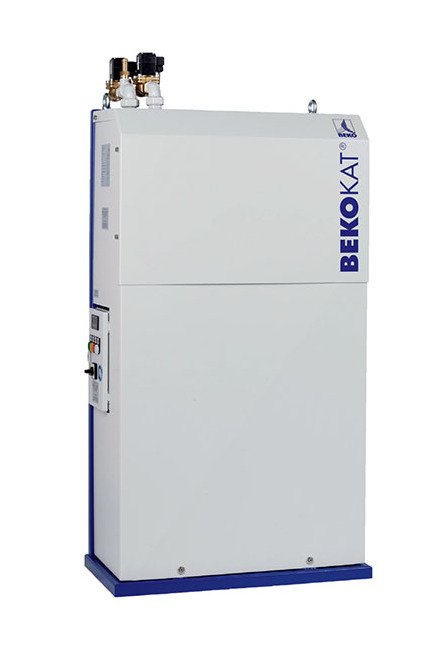

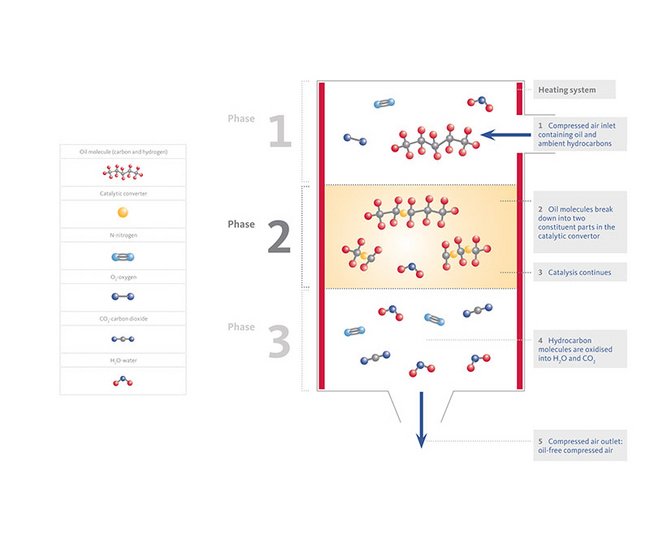

The BEKOKAT® CC 425 Catalytic Convertor from the BEKOKAT® Catalytic Conversion Systems line is a top-of-the-line solution for clean air treatment. Designed for the total oxidation of hydrocarbons and other air impurities in compressed air, this system ensures oil and bacteria removal, delivering oil-free air independently of ambient conditions. Certified to ISO 8573-1, Class 1 standards, it achieves an ultra-low residual oil content of ⤠.003 mg/m3 and produces germ-free, sterile air. With a flow rate of 425 scfm and a maximum operating pressure of 232 psig, this catalytic converter is a reliable and efficient choice for condensate management.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Attainable Oil Residue
⥠0.003 mg/m³

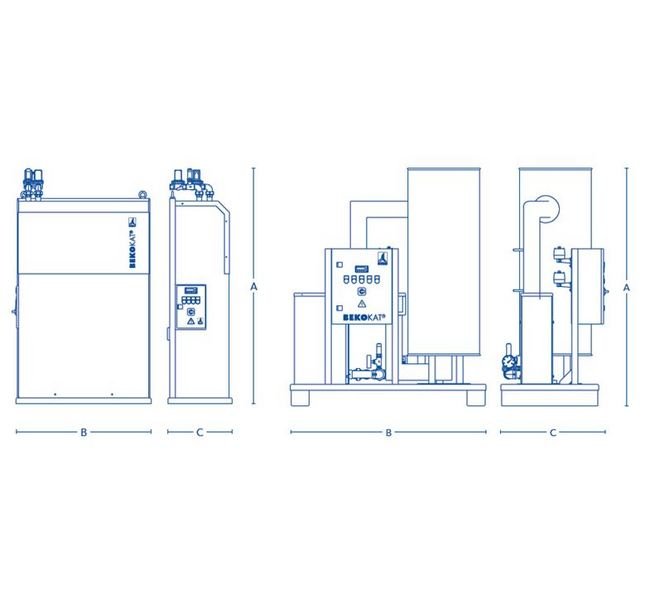

Specifications Dimension A
68.8 in
Specifications Dimension B
61.0 in
Specifications Dimension C
33.5 in
Specifications Flow Rate
425 scfm
Specifications Installed Power
8.70 kW
Specifications Maximum Operating Pressure
232 psig
Specifications Minimum Operating Temperature
+41 ºF
Specifications Pipe Size Npt
2 in
Specifications Power Consumption Full Load Kw
3.26 kW
Specifications Power Consumption Stand By Kw
0.2400 kW
Specifications Standard Ac Voltage
230 V at 1 phase | 460 V at 3 phase
Specifications Warranty
5 years
Specifications Weight
1157 lb
Standard Features And Benefits 0
Oil Free Compressed Air:Continuously produced from any compressor type down to 0.003 mg/m3.Independent of Conditions:Stable residual oil content throughout the year, independent from any ambient condition.Environmentally Friendly:Produces oil free condensate of the highest quality.Partial Load Operation:Maximum process reliability regardless of production fluctuations.Responsive Controls:Ensures machine safety and operational accuracy.
Technical Specifications Maximum Operating Temperature
+383 ºF
