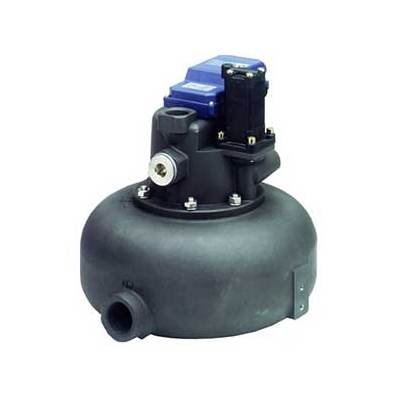

BEKOMAT CV Series Centrifugal Compressor Drain
BEKOMAT CV Series Centrifugal Compressor Drain
SKU:CLE-2c4450
Efficient BEKOMAT CV Series Drain for centrifugal compressors, with automatic zero loss technology and wide temperature range.
Regular price
$2,417.00
Regular price
Sale price
$2,417.00
Unit price
per
Initiate Order
BEKOMAT CV Series Centrifugal Compressor Drain
$2,417.00
Quantity: 1
Claim Your Seller Account
BEKOMAT CV Series Centrifugal Compressor Drain
$2,417.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BEKOMAT CV Series Drain is specifically designed for centrifugal compressors, featuring an automatic zero loss drain with a standard Viton® diaphragm. With a wide operating temperature range from 33°F to 140°F and multiple voltage options including 115 VAC, 24 VAC/DC, 48 VAC, and 230 VAC 50/60 Hz, this drain ensures efficient condensate management. With a maximum working pressure of 232 psi and durable aluminum housing, it meets the highest standards of performance and reliability. Ideal for applications requiring a compressor capacity of 50,000 cfm and beyond, the BEKOMAT CV Series is a trusted solution for industrial and institutional environments.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
50,000 cfm

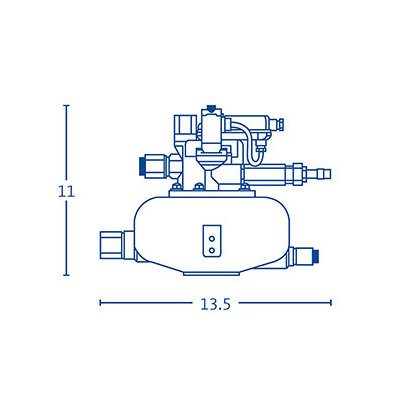

Specifications Dimension A
11 in
Specifications Dimension B
13.5 in
Specifications Dryer Capacity
100,000 cfm
Specifications Filter Capacity
500,000 cfm
Specifications Housing Material
Aluminum
Specifications Inletoutlet Connections
2 x 3/4" / 1 x1"
Specifications Maximum Working Pressure
232 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
12 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
2417 USD
Specifications Weight
13.2 lbs
