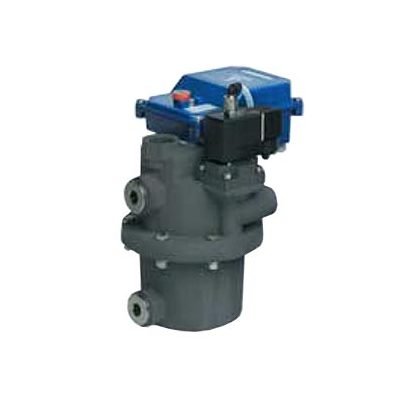

BEKOMAT EX Series Drain for Explosive Atmospheres
BEKOMAT EX Series Drain for Explosive Atmospheres
SKU:CLE-ee599c
Efficient BEKOMAT EX Series Drain for explosive atmospheres with automatic zero loss, Viton diaphragm, and wide temperature range.
Regular price
$2,553.00
Regular price
Sale price
$2,553.00
Unit price
per
Initiate Order
BEKOMAT EX Series Drain for Explosive Atmospheres
$2,553.00
Quantity: 1
Claim Your Seller Account
BEKOMAT EX Series Drain for Explosive Atmospheres
$2,553.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BEKOMAT EX Series Drain is engineered for use in explosive atmospheres, featuring automatic zero loss functionality and a standard Viton diaphragm. With a robust construction and a wide operating temperature range of 33°F to 140°F, this drain ensures safe and efficient condensate management. Designed for compliance with stringent institutional procurement standards, the drain offers a compressor capacity of 4,500 cfm, maximum working pressure of 232 psi, and aluminum housing material for durability in industrial environments.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
4,500 cfm

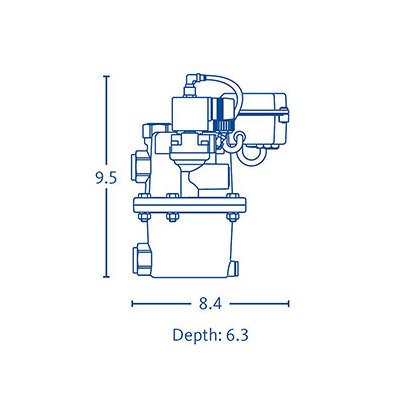

Specifications Dimension A
9.5 in
Specifications Dimension B
8.4 in
Specifications Dryer Capacity
9,000 cfm
Specifications Filter Capacity
45,000 cfm
Specifications Housing Material
Aluminum
Specifications Inletoutlet Connections
3 x 3/4"
Specifications Maximum Working Pressure
232 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
12 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
2553 USD
Specifications Weight
7.5 lbs
