BEKOMAT EX Series Explosion-Proof Condensate Drain
BEKOMAT EX Series Explosion-Proof Condensate Drain
SKU:CLE-289d02
Safety meets efficiency with the BEKOMAT EX Series Drain. Automatic zero loss, explosion-proof design.
Regular price
$5,906.00
Regular price
Sale price
$5,906.00
Unit price
per
Initiate Order
BEKOMAT EX Series Explosion-Proof Condensate Drain
$5,906.00
Quantity: 1
Claim Your Seller Account
BEKOMAT EX Series Explosion-Proof Condensate Drain
$5,906.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

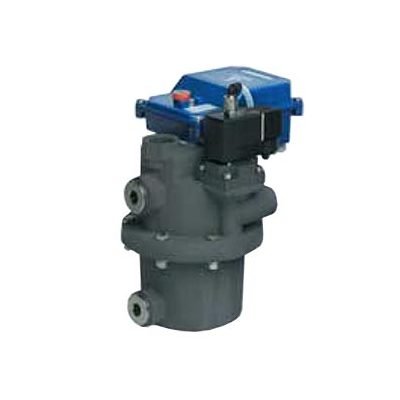

The BEKOMAT EX Series Drain is specially designed for use in explosive atmospheres, featuring an automatic zero loss drain system with a Viton diaphragm. With a wide operating temperature range of 33°F to 140°F and a sturdy stainless steel housing, this drain ensures safe and efficient condensate removal. It comes with a standard voltage of 12 VDC and meets stringent institutional procurement standards for reliability and performance. Ideal for environments requiring compliance with strict safety regulations.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
4,500 cfm

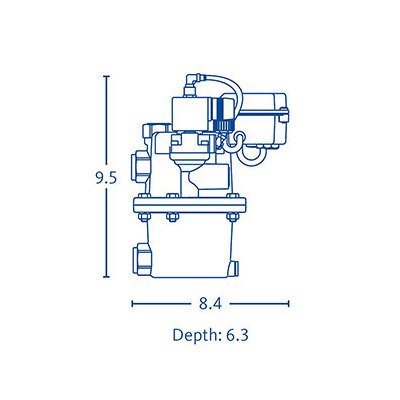

Specifications Dimension A
9.5 in
Specifications Dimension B
8.4 in
Specifications Dryer Capacity
9,000 cfm
Specifications Filter Capacity
45,000 cfm
Specifications Housing Material
Stainless Steel
Specifications Inletoutlet Connections
3 x 3/4"
Specifications Maximum Working Pressure
232 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
12 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
5906 USD
Specifications Weight
7.5 lbs
