BEKOMAT EX Series Explosive Atmosphere Condensate Drain
BEKOMAT EX Series Explosive Atmosphere Condensate Drain
SKU:CLE-b9a7b8
BEKOMAT EX Series Drain: Automatic zero loss drain for explosive atmospheres, Viton diaphragm, 12VDC, max working pressure 232 psi.
Regular price
$3,358.00
Regular price
Sale price
$3,358.00
Unit price
per
Initiate Order
BEKOMAT EX Series Explosive Atmosphere Condensate Drain
$3,358.00
Quantity: 1
Claim Your Seller Account
BEKOMAT EX Series Explosive Atmosphere Condensate Drain
$3,358.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

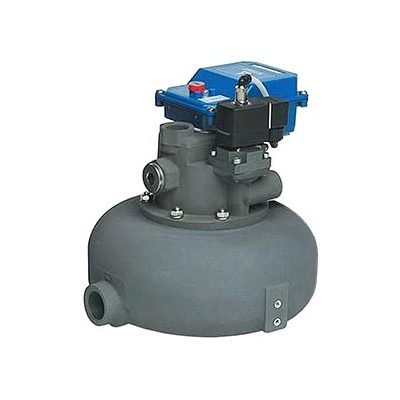

The BEKOMAT EX Series Drain is specifically designed for explosive atmospheres, featuring an automatic zero loss drain with a standard Viton diaphragm. With a voltage of 12 VDC and operating temperatures ranging from 33°F to 140°F, this drain ensures safe and efficient condensate removal. It boasts a compressor capacity of 50,000 cfm, a dry capacity of 100,000 cfm, and a filter capacity of 500,000 cfm. The durable aluminum housing, precise dimensions, and a maximum working pressure of 232 psi make it ideal for a wide range of applications.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
50,000 cfm

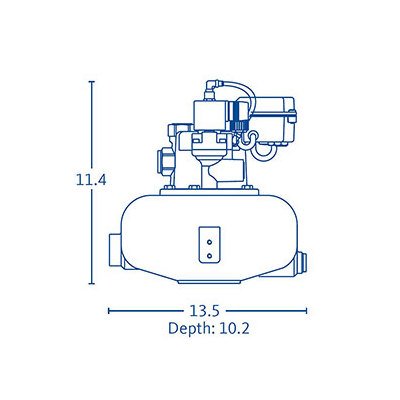

Specifications Dimension A
11.4 in
Specifications Dimension B
13.5 in
Specifications Dryer Capacity
100,000 cfm
Specifications Filter Capacity
500,000 cfm
Specifications Housing Material
Aluminum
Specifications Inletoutlet Connections
2 x 3/4" / 1 x 1"
Specifications Maximum Working Pressure
232 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
12 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
3358 USD
Specifications Weight
14.8 lbs
