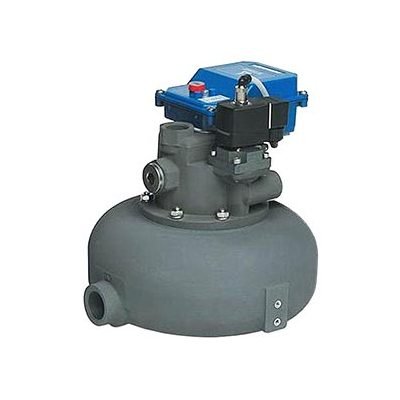

BEKOMAT EX Series Explosive Atmosphere Drain
BEKOMAT EX Series Explosive Atmosphere Drain
SKU:CLE-c1d712
Efficient condensate drain for explosive atmospheres. Automatic zero-loss system, stainless steel construction, and wide temperature range for industrial safety.
Regular price
$8,112.00
Regular price
Sale price
$8,112.00
Unit price
per
Initiate Order
BEKOMAT EX Series Explosive Atmosphere Drain
$8,112.00
Quantity: 1
Claim Your Seller Account
BEKOMAT EX Series Explosive Atmosphere Drain
$8,112.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BEKOMAT EX Series Drain is specifically designed for use in explosive atmospheres, featuring an automatic zero-loss drain system with a standard Viton diaphragm. With a durable stainless steel housing and NEMA 4 standard voltage rating of 12 VDC, this drain ensures safe, efficient condensate management. It offers a wide operating temperature range from 33°F to 140°F and can handle high compressor, dryer, and filter capacities, making it ideal for industrial settings requiring compliance with stringent safety standards.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
50,000 cfm

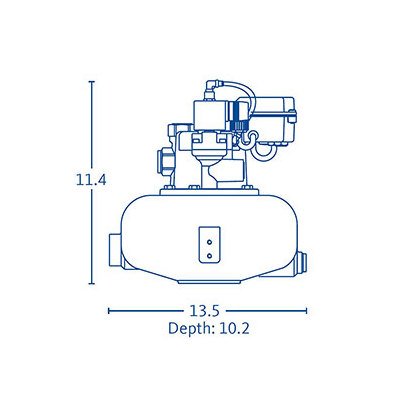

Specifications Dimension A
11.4 in
Specifications Dimension B
13.5 in
Specifications Dryer Capacity
100,000 cfm
Specifications Filter Capacity
500,000 cfm
Specifications Housing Material
Stainless Steel
Specifications Inletoutlet Connections
2 x 3/4" / 1 x 1"
Specifications Maximum Working Pressure
232 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
12 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
8112 USD
Specifications Weight
14.8 lbs
