BEKOMAT High Pressure E Series Drain
BEKOMAT High Pressure E Series Drain
SKU:CLE-da0196
BEKOMAT High Pressure E Series Drain - Efficient, reliable, and durable solution for high-pressure condensate drainage in industrial settings.
Regular price
$8,130.00
Regular price
Sale price
$8,130.00
Unit price
per
Initiate Order
BEKOMAT High Pressure E Series Drain
$8,130.00
Quantity: 1
Claim Your Seller Account
BEKOMAT High Pressure E Series Drain
$8,130.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

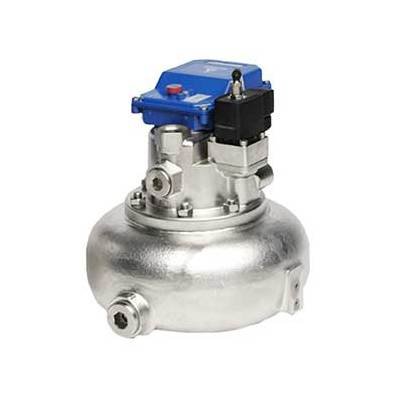

The BEKOMAT High Pressure E Series Drain is a top-of-the-line solution for condensate drainage in high-pressure systems. It comes equipped with an automatic zero loss drain feature and a standard Viton® diaphragm, ensuring efficient and reliable operation. With a maximum working pressure of 360 psi and a wide operating temperature range from 33°F to 140°F, this drain can handle the demanding conditions of industrial applications. The stainless steel housing, along with precise engineering, guarantees durability and long-term performance. Suitable for compressor capacities up to 50,000 cfm, dryer capacities up to 100,000 cfm, and filter capacities up to 500,000 cfm, this drain is a must-have for facilities prioritizing air treatment and system efficiency.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
50,000 cfm

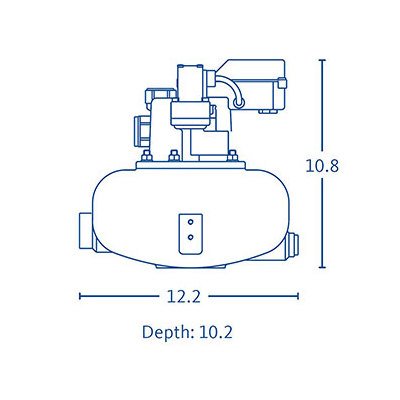

Specifications Dimension A
10.8 in
Specifications Dimension B
12.2 in
Specifications Dryer Capacity
100,000 cfm
Specifications Filter Capacity
500,000 cfm
Specifications Housing Material
Stainless Steel
Specifications Inletoutlet Connections
2 x 3/4" / 1 x 1"
Specifications Maximum Working Pressure
360 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
12 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
8130 USD
Specifications Weight
14.8 lbs
