BEKOMAT High Pressure E-Series Drain
BEKOMAT High Pressure E-Series Drain
SKU:CLE-3f148b
Efficient high pressure condensate drain with automatic zero loss feature and stainless steel housing.
Regular price
$4,700.00
Regular price
Sale price
$4,700.00
Unit price
per
Initiate Order
BEKOMAT High Pressure E-Series Drain
$4,700.00
Quantity: 1
Claim Your Seller Account
BEKOMAT High Pressure E-Series Drain
$4,700.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

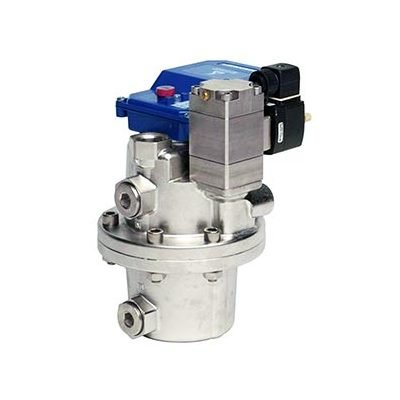

The BEKOMAT High Pressure E-Series Drain is specifically designed for high pressure systems, offering efficient condensate drainage. Featuring an automatic zero loss drain with a standard Viton diaphragm, this drain ensures reliable operation. With a durable stainless steel housing and a wide operating temperature range of 33°F to 140°F, this drain is suitable for a variety of industrial applications. Its maximum working pressure of 360 psi and various voltage options make it a versatile solution for demanding environments.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
4,500 cfm

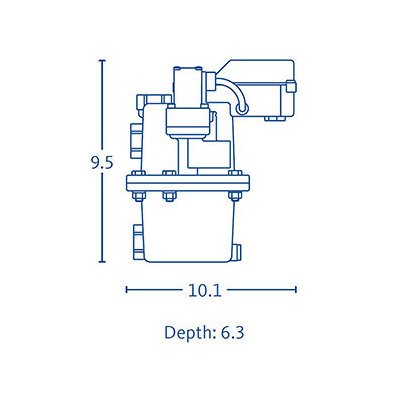

Specifications Dimension A
9.5 in
Specifications Dimension B
10.1 in
Specifications Dryer Capacity
9,000 cfm
Specifications Filter Capacity
45,000 cfm
Specifications Housing Material
Stainless Steel
Specifications Inletoutlet Connections
3 x 3/4"
Specifications Maximum Working Pressure
360 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
12 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
4700 USD
Specifications Weight
7.5 lbs
