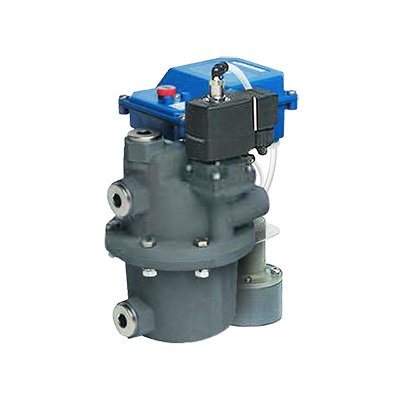

The BEKOMAT NLV Series Condensate Drain is a reliable solution designed specifically for centrifugal compressors. Featuring an automatic zero-loss drain with a standard Viton diaphragm, this drain ensures efficient condensate removal. With a robust aluminum housing, it can withstand temperatures ranging from 33°F to 140°F and pressures up to 360 psi. The drain's versatile voltage options include 115 VAC as standard, with additional choices of 24 VAC/DC, 48 VAC, and 230 VAC 50/60 Hz, catering to diverse operational needs.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
6,000 cfm

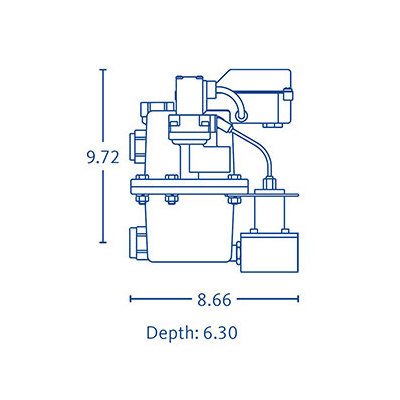

Specifications Dimension A
9.72 in
Specifications Dimension B
8.66 in
Specifications Dryer Capacity
12,000 cfm
Specifications Filter Capacity
60,000 cfm
Specifications Housing Material
Aluminum
Specifications Inletoutlet Connections
3 x 3/4"
Specifications Maximum Working Pressure
360 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
0 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
2433 USD
Specifications Weight
7.5 lbs
