BEKOMAT V-Series Low Pressure/Vacuum Drain
BEKOMAT V-Series Low Pressure/Vacuum Drain
SKU:CLE-d36478
Efficient BEKOMAT V-Series Low Pressure/Vacuum Drain for optimal condensate management in low pressure and vacuum systems.
Regular price
$3,358.00
Regular price
Sale price
$3,358.00
Unit price
per
Initiate Order
BEKOMAT V-Series Low Pressure/Vacuum Drain
$3,358.00
Quantity: 1
Claim Your Seller Account
BEKOMAT V-Series Low Pressure/Vacuum Drain
$3,358.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BEKOMAT V-Series Low Pressure/Vacuum Drain is a cutting-edge solution designed for efficient condensate management in low pressure and vacuum systems. Featuring patented zero loss technology and a reliable Viton® diaphragm, this drain ensures optimal performance. With a working temperature range of 33°F to 140°F and a maximum working pressure of 26 psi, it offers durable functionality. The aluminum housing and 3 x 3/4" inlet/outlet connections enhance durability and ease of installation. Whether it's the 115 VAC standard voltage or optional voltages like 24 VAC/DC, 48 VAC, 230V AC 50/60 Hz, this drain is versatile and adaptable to various system requirements.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
50,000 cfm

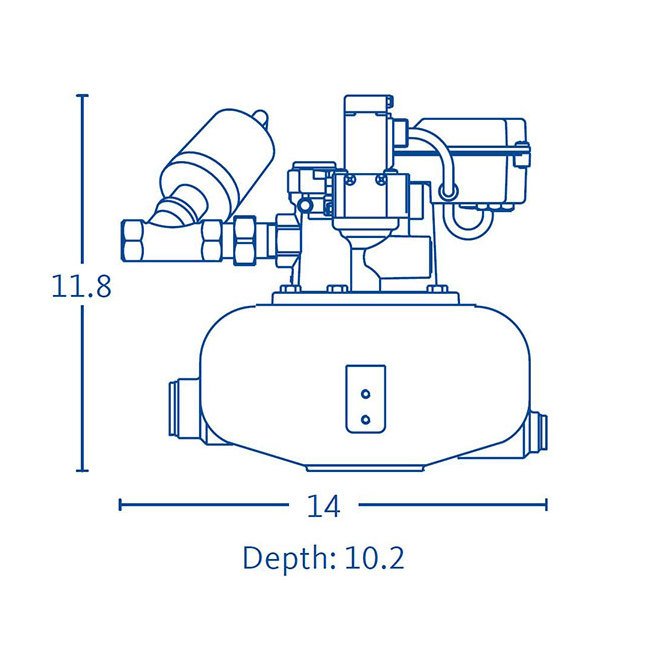

Specifications Dimension A
11.8 in
Specifications Dimension B
14 in
Specifications Dryer Capacity
100,000 cfm
Specifications Filter Capacity
500,000 cfm
Specifications Housing Material
Aluminum
Specifications Inletoutlet Connections
3 x 3/4"
Specifications Maximum Working Pressure
26 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
1.45 psi
Specifications Min Working Temperature
33ºF
Specifications Web Price
3358 USD
