BEKOMAT V Series Low Pressure/Vacuum Drain
BEKOMAT V Series Low Pressure/Vacuum Drain
SKU:CLE-1310b6
Top-of-the-line automatic drain for low pressure/vacuum systems; patented technology & durable design; wide operating temp range.
Regular price
$2,553.00
Regular price
Sale price
$2,553.00
Unit price
per
Initiate Order
BEKOMAT V Series Low Pressure/Vacuum Drain
$2,553.00
Quantity: 1
Claim Your Seller Account
BEKOMAT V Series Low Pressure/Vacuum Drain
$2,553.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

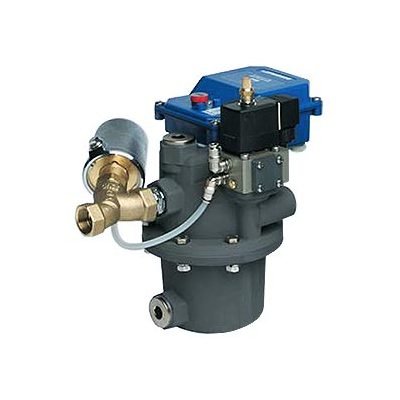

The BEKOMAT V Series Low Pressure/Vacuum Drain is a top-of-the-line solution for condensate draining in low pressure and vacuum systems. Featuring patented technology and a Viton diaphragm, this drain ensures automatic zero-loss functionality. With a durable aluminum housing and a wide operating temperature range from 33°F to 140°F, this drain is designed to meet the rigorous demands of industrial applications. Its versatile voltage options and precise dimensions make it a reliable and efficient choice for maintaining clean air quality in your systems.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Compressor Capacity
4,500 cfm

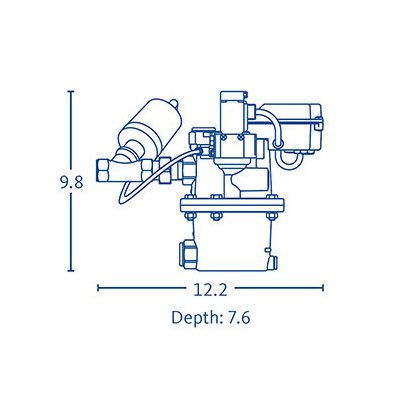

Specifications Dimension A
9.8 in
Specifications Dimension B
12.2 in
Specifications Dryer Capacity
9,000 cfm
Specifications Filter Capacity
45,000 cfm
Specifications Housing Material
Aluminum
Specifications Inletoutlet Connections
3 x 3/4"
Specifications Maximum Working Pressure
26 psi
Specifications Max Working Temperature
140ºF
Specifications Min Working Pressure
1.45 psi
Specifications Min Working Temperature
33ºF
