The Bend Sheaves with Mounting Frame, model BS, is a robust accessory designed for lifting and pulling applications with a capacity of 4000 lbs. It features a wire rope diameter of 7/16 inches and precision engineering with dimensions tailored for efficient performance. Equipped with an electrical brake, this accessory ensures safe operations while offering versatile mounting options for horizontal, inverted ceiling, and vertical configurations. The included controls, featuring a lever drum and a magnetic remote pushbutton, provide ease of use and flexibility in various settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
4000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

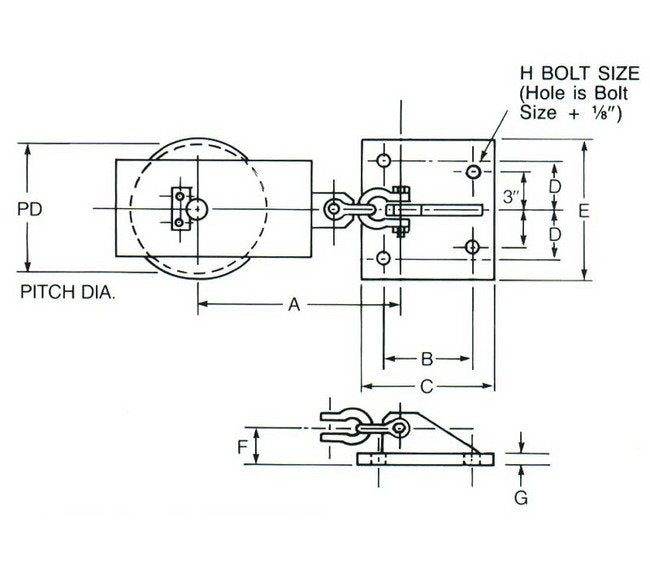

Specifications Dimension A
14 inches
Specifications Dimension B
10 inches
Specifications Dimension C
12 1/2 inches
Specifications Dimension D
3 1/2 inches
Specifications Dimension E
9 1/2 inches
Specifications Dimension F
3 1/2 inches
Specifications Dimension G
3/4 inches
Specifications Dimension H
7/8 inches
Specifications Model
BS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
6 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
7/16 inches
