Bermar Standard Chip Deflector
Bermar Standard Chip Deflector
SKU:STA-2b74dd
Protect machine ways with Bermar's durable Standard Chip Deflector, ideal for hot chip applications. Customizable to your requirements.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Bermar Standard Chip Deflector
$39.99
Quantity: 1
Claim Your Seller Account
Bermar Standard Chip Deflector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

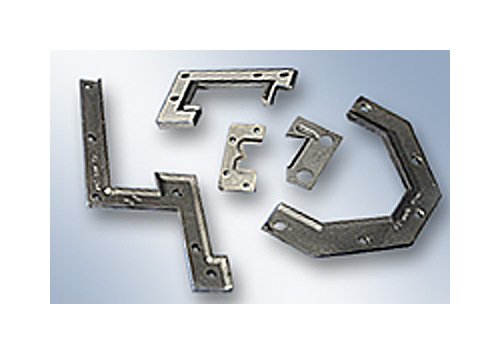

The Bermar Standard Chip Deflector is precision-crafted from 16 gauge Cold Rolled Steel (CRS), offering exceptional durability and protection for machine ways and way wipers. Specifically designed for hot chip applications, these deflectors serve as stiffeners, adding robustness to your equipment. Easily customizable to fit your unique specifications, with or without hole patterns, these deflectors ensure a secure fit and optimal chip protection. Ideal for both consumer and institutional buyers, the Bermar Standard Chip Deflector guarantees top-notch performance and longevity.
Product Specifications

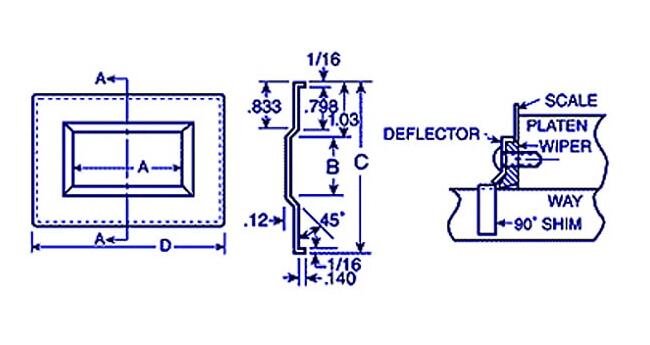

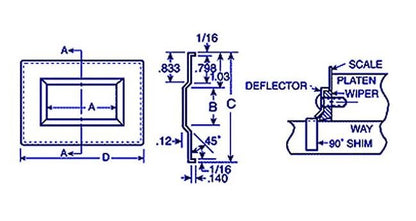

Mounting Instructions Mounting Instructions
Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90º shim under lip of deflector.Use 6" scale. Apply pressure 90º leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.
Specifications Dimension A
4.125 in
Specifications Dimension B
1.750 in
Specifications Materials
Cold Rolled Steel (CRS)
Specifications Material Thickness
16 gauge
