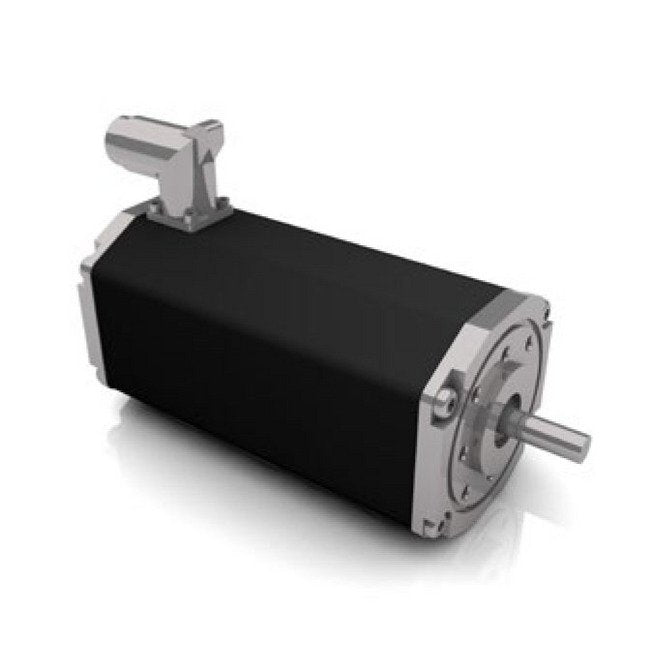

The BG Series 14.1A/126W Brushless DC Motor by Dunkermotoren is a highly dynamic, efficient, and reliable motor designed for industrial applications. This motor features neodymium magnets, hall sensors for precise rotor position detection, high-resolution encoders, and optional redundant encoders for added safety. With a wide speed range, high power density, and maintenance-free operation, this motor offers exceptional performance and durability. Compliant with Ingress Protection (IP65) standards and UL certifications, it meets the stringent requirements of institutional and government procurement.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
158 W
Technical Specs Maximum Torque
1.46 N·m
Technical Specs Nominal Current
14.1 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
126 W
Technical Specs Nominal Speed
3460 rpm
Technical Specs Nominal Torque
0.347 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4480 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
70 g/cm²
Technical Specs Stall Torque
1.315 N·m
Technical Specs Torque Constant
0.029 N·mA-1
Technical Specs Weight Of Motor
0.99 kg
