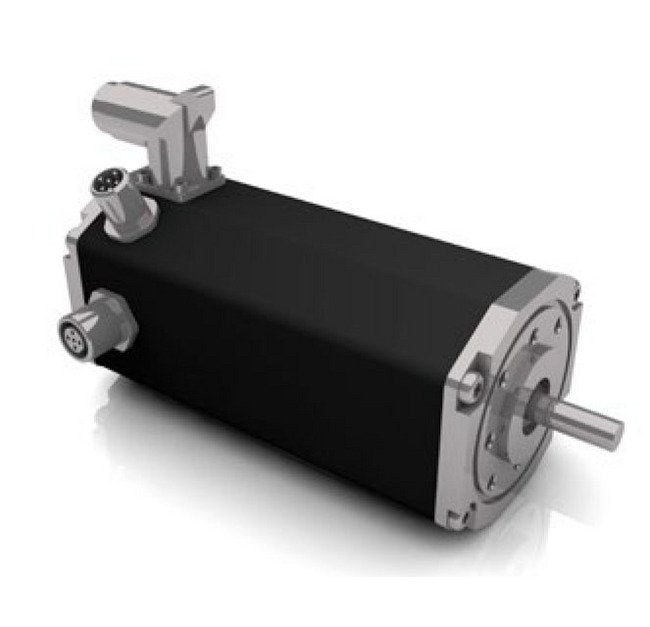

BG Series 11A Brushless DC Motor with Integrated Control
BG Series 11A Brushless DC Motor with Integrated Control
SKU:BGS-a0d735
High-performance BG Series 11A Brushless DC Motor with integrated controls for precise operations. Meets top industry standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
BG Series 11A Brushless DC Motor with Integrated Control
$349.99
Quantity: 1
Claim Your Seller Account
BG Series 11A Brushless DC Motor with Integrated Control
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series Brushless DC Motor offers seamless integrated control electronics, allowing for precision speed, positioning, and current control operations. With a nominal current of 11A and a nominal output power of 103W, this motor delivers reliable performance for various applications. It meets stringent industry standards like China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), ensuring quality and compliance. Designed for efficiency and durability, it features high IP protection, inherent overload protection, and compatibility with advanced encoders, brakes, and gearboxes in a modular system.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
278 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
160 W
Technical Specs Maximum Torque
0.82 N·m
Technical Specs Nominal Current
11 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
103 W
Technical Specs Nominal Speed
2800 rpm
Technical Specs Nominal Torque
0.35 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3810 rpm
Technical Specs Peak Power
684 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
70 g/cm²
Technical Specs Torque Constant
0.045 N·mA-1
Technical Specs Weight Of Motor
1.2 kg
