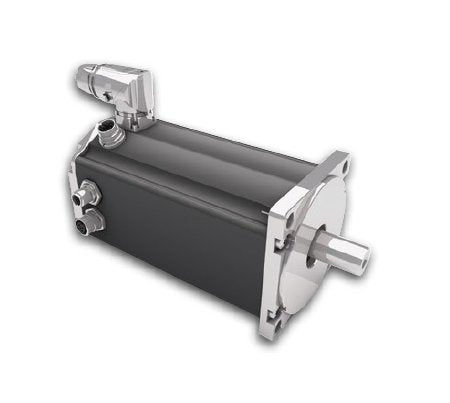

BG Series 15.7A Brushless DC Motor with Integrated Control
BG Series 15.7A Brushless DC Motor with Integrated Control
SKU:BGS-017c80
Enhanced precision and control with the BG Series 15.7A Brushless DC Motor, ideal for diverse applications.
Regular price
$689.99
Regular price
Sale price
$689.99
Unit price
per
Initiate Order
BG Series 15.7A Brushless DC Motor with Integrated Control
$689.99
Quantity: 1
Claim Your Seller Account
BG Series 15.7A Brushless DC Motor with Integrated Control
$689.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series 15.7 Ampere Brushless DC Motor features advanced control options through CANopen or stand-alone operation. With high positions accuracy, integral magnetic encoder, and vector control (FOC), it offers precise control characteristics. This motor, with a maximum torque of 8.05 N·m and galvanically insulated power and logic supply, ensures reliable performance. It is optimized for compatibility with high resolution encoders, brakes, and gearboxes in a modular system, offering superior protection against water and contamination.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 86 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
2286 W
Technical Specs Maximum Torque
8.05 N·m
Technical Specs Nominal Current
15.7 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
859 W
Technical Specs Nominal Speed
4120 rpm
Technical Specs Nominal Torque
1.99 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4125 rpm
Technical Specs Peak Current
51 A
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Torque Constant
0.134 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
