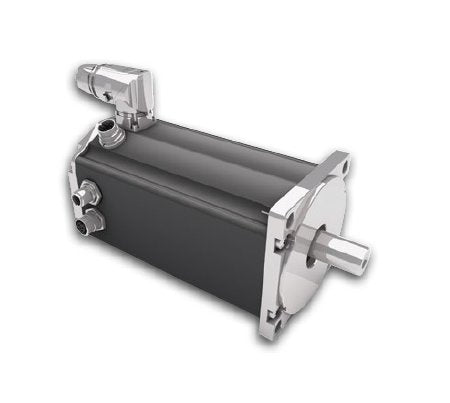

BG Series 25.7A 1127W Brushless DC Motor with Integrated Control
BG Series 25.7A 1127W Brushless DC Motor with Integrated Control
SKU:BGS-880e66
High-performance BG Series Brushless DC Motor for precise control and exceptional reliability in industrial settings.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
BG Series 25.7A 1127W Brushless DC Motor with Integrated Control
$899.99
Quantity: 1
Claim Your Seller Account
BG Series 25.7A 1127W Brushless DC Motor with Integrated Control
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series Brushless DC Motor offers precise control with integrated CANopen or stand-alone operation capabilities. Featuring a 4Q servo controller, integral magnetic encoder, vector control, and galvanically insulated power supply. With a nominal current of 25.7A, 1127W nominal output power, and compliance with IP65 protection standards, this motor ensures high performance and reliability for industrial applications.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 66 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
3377 W
Technical Specs Maximum Torque
10.37 N·m
Technical Specs Nominal Current
25.7 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
1127 W
Technical Specs Nominal Speed
3870 rpm
Technical Specs Nominal Torque
2.78 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3790 rpm
Technical Specs Peak Current
82 A
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
1890 g/cm²
Technical Specs Torque Constant
0.117 N·mA-1
Technical Specs Weight Of Motor
5.1 kg
