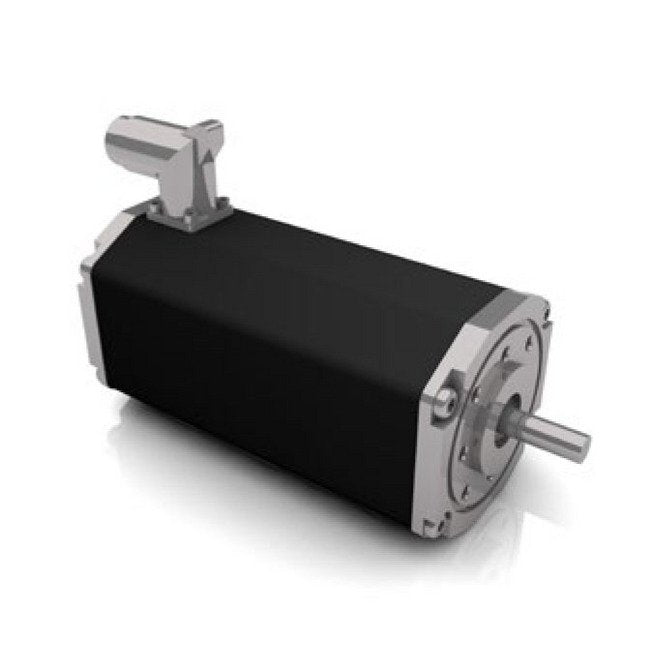

BG Series 3.7A Brushless DC Motor with Integrated Hall Sensors
BG Series 3.7A Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-054eac
Experience high efficiency and dynamic performance with the BG Series 3.7A Brushless DC Motor.
Regular price
$459.99
Regular price
Sale price
$459.99
Unit price
per
Initiate Order
BG Series 3.7A Brushless DC Motor with Integrated Hall Sensors
$459.99
Quantity: 1
Claim Your Seller Account
BG Series 3.7A Brushless DC Motor with Integrated Hall Sensors
$459.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series 3.7 Ampere Brushless DC Motor is a highly dynamic 3-phase motor featuring neodymium magnets and hall sensors for precise rotor position detection. With a nominal output power of 359W and a peak power of 730W, this motor delivers exceptional efficiency and performance. Designed for longevity and high power density, it offers a wide speed range, robust construction, and maintenance-free operation. Compliant with IP65 standards and certified by CQC and UL, it meets quality and safety requirements for diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
838 W
Technical Specs Maximum Torque
4.38 N·m
Technical Specs Nominal Current
3.7 A
Technical Specs Nominal Direct Current Dc Voltage
110 V
Technical Specs Nominal Output Power
359 W
Technical Specs Nominal Speed
3530 rpm
Technical Specs Nominal Torque
0.973 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3860 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
188 g/cm²
Technical Specs Torque Constant
0.298 N·mA-1
Technical Specs Weight Of Motor
1.93 kg
