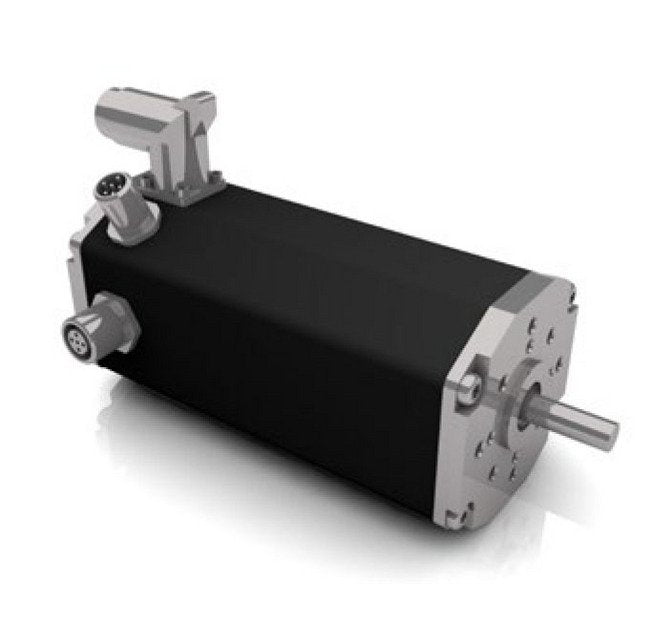

The BG Series Brushless DC Motor features a Nominal Current of 4.2A and Nominal Output Power of 160W. With integrated control electronics, this motor allows for speed, current, and low-resolution position control, making it ideal for a wide range of applications. Certified with Ingress Protection (IP65) and compliance with industry standards like CE and CQC, it offers high efficiency and reliability in demanding environments.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
195 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
284 W
Technical Specs Maximum Torque
1.18 N·m
Technical Specs Nominal Current
4.2 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
160 W
Technical Specs Nominal Speed
3560 rpm
Technical Specs Nominal Torque
0.43 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current Consumption
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
6430 rpm
Technical Specs Peak Current Consumption
8.6 A
Technical Specs Peak Power
391 W
Technical Specs Phase Peak Current
15495 mA
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
128 g/cm²
Technical Specs Torque Constant
0.142 N·mA-1
Technical Specs Weight Of Motor
1.5 kg
