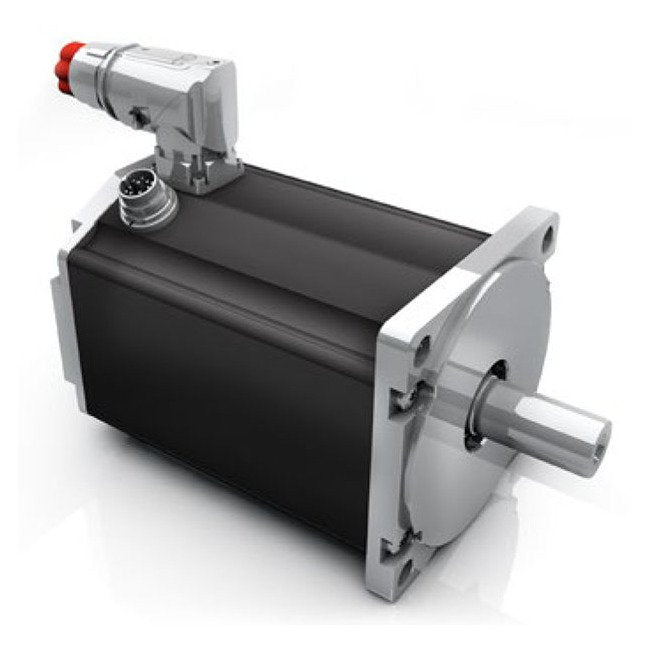

BG Series 50A 700W Brushless DC Motor with Hall Sensors
BG Series 50A 700W Brushless DC Motor with Hall Sensors
SKU:BGS-975dc8
Experience dynamism and reliability with the BG Series 50A 700W Brushless DC Motor from Dunkermotoren.
Regular price
$569.99
Regular price
Sale price
$569.99
Unit price
per
Initiate Order
BG Series 50A 700W Brushless DC Motor with Hall Sensors
$569.99
Quantity: 1
Claim Your Seller Account
BG Series 50A 700W Brushless DC Motor with Hall Sensors
$569.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series 50 Ampere 700 Watt Brushless DC Motor with Integrated Hall Sensors by Dunkermotoren boasts superior dynamics and precision. This motor features neodymium magnets, redundancy options, and customizable voltage versions, making it a versatile and safe choice. With high efficiency, robust design, and adherence to industry standards like UL, this motor ensures a long, maintenance-free operation with optimized control characteristics and high power density.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1700 W
Technical Specs Maximum Torque
6.5 N·m
Technical Specs Nominal Current
50 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
700 W
Technical Specs Nominal Speed
3900 rpm
Technical Specs Nominal Torque
1.7 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4400 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Stall Torque
16 N·m
Technical Specs Torque Constant
0.12 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
