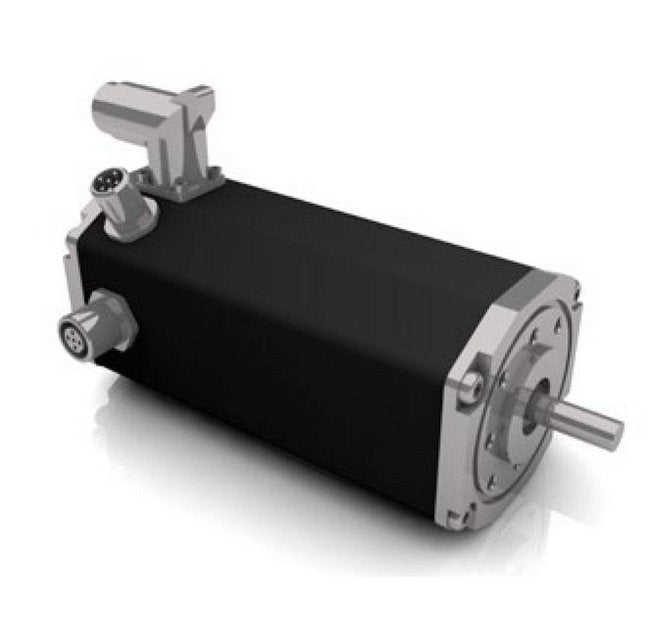

BG Series 7.1A Brushless DC Motor with Integrated Control Electronics
BG Series 7.1A Brushless DC Motor with Integrated Control Electronics
SKU:BGS-5926b6
High-performance BG Series 7.1A Brushless DC Motor with 136W output power, ideal for industrial settings.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
BG Series 7.1A Brushless DC Motor with Integrated Control Electronics
$349.99
Quantity: 1
Claim Your Seller Account
BG Series 7.1A Brushless DC Motor with Integrated Control Electronics
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series 7.1 Ampere Brushless DC Motor is engineered for precise speed, positioning, and current control applications. With a nominal output power of 136W, this motor offers exceptional performance with high IP protection against water and contaminants. It comes equipped with integrated control electronics, programmable features, inherent overload protection, and smart diagnostics. Ideal for industrial settings requiring reliability and efficiency, this motor can be seamlessly integrated with high-resolution encoders, brakes, and gearboxes. Certified under China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), it meets stringent industry standards for quality and safety.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
278 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
267 W
Technical Specs Maximum Torque
0.98 N·m
Technical Specs Nominal Current
7.1 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
136 W
Technical Specs Nominal Speed
3820 rpm
Technical Specs Nominal Torque
0.34 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
5300 rpm
Technical Specs Peak Current
16 A
Technical Specs Peak Power
684 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
70 g/cm²
Technical Specs Torque Constant
0.064 N·mA-1
Technical Specs Weight Of Motor
1.2 kg
