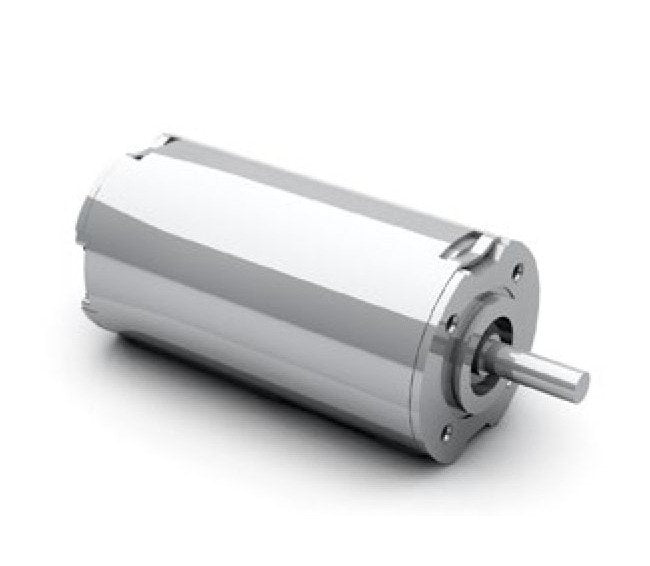

BG Series Brushless DC Motor
BG Series Brushless DC Motor
SKU:BGS-ff8b05
Highly dynamic and efficient BG Series Brushless DC Motor with integrated commutation electronics for premium industrial performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
BG Series Brushless DC Motor
$349.99
Quantity: 1
Claim Your Seller Account
BG Series Brushless DC Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series Brushless Direct Current (DC) Motor is a highly dynamic, efficient, and low-maintenance motor designed for a wide range of industrial applications. With a nominal current of 2.1A and a nominal output power of 40W, this motor offers high efficiency, optimal control characteristics, and a wide speed range. Featuring integrated commutation electronics and options for encoders and gearboxes, it provides adaptability and market-oriented solutions. Compliant with industry standards like Underwriters Laboratories (UL), this motor ensures premium efficiency, robust design, and high overload capability, meeting the quality and performance requirements of institutional buyers.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Alternatively, these motors are also available with integrated speed and positioning electronics (see dMove and dPro)Particularly smooth running is the motor BGA 22No cogging torque/ coreless designLow noise levelThis motor is on request available in different voltage versions
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsSpeed set input (6-wire version)Bipolar (3-wire version)Block commutationDigital inputsDigital outputsAnalog inputsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
64 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
79 W
Technical Specs Nominal Current
2.1 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
40 W
Technical Specs Nominal Speed
3610 rpm
Technical Specs Nominal Torque
0.106 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4250 rpm
Technical Specs Peak Current
6.5 A
Technical Specs Peak Power
110 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Stall Torque
0.411 N·m
Technical Specs Torque Constant
0.058 N·mA-1
Technical Specs Weight Of Motor
0.36 kg
