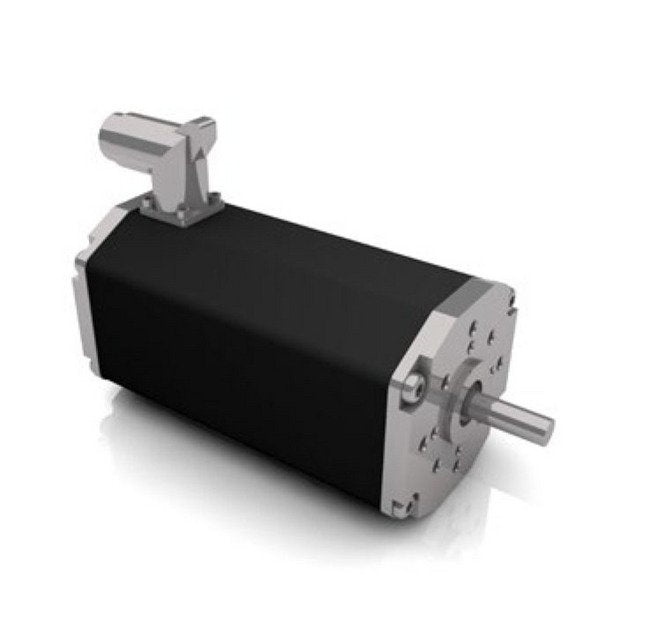

The BG Series Brushless DC Motor with Integrated Hall Sensors by Dunkermotoren is a high-performance 3-phase EC motor designed for dynamic applications. With a rated power of 171W and a peak power of 355W, this motor offers efficient and reliable operation. It features a nominal current of 4.59A, 48V DC voltage, and a maximum torque of 1.70 N·m. The motor meets IP65 protection standards, ensuring durability and longevity. Ideal for applications requiring high efficiency, dynamic acceleration, and wide speed range.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsHigh efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
181 W
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
319 W
Technical Specs Maximum Torque
1.70 N·m
Technical Specs Nominal Current
4.59 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
171 W
Technical Specs Nominal Speed
3390 rpm
Technical Specs Nominal Torque
0.482 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
5470 rpm
Technical Specs Peak Power
355 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
172 g/cm²
Technical Specs Torque Constant
0.143 N·mA-1
Technical Specs Weight Of Motor
1.80 kg
