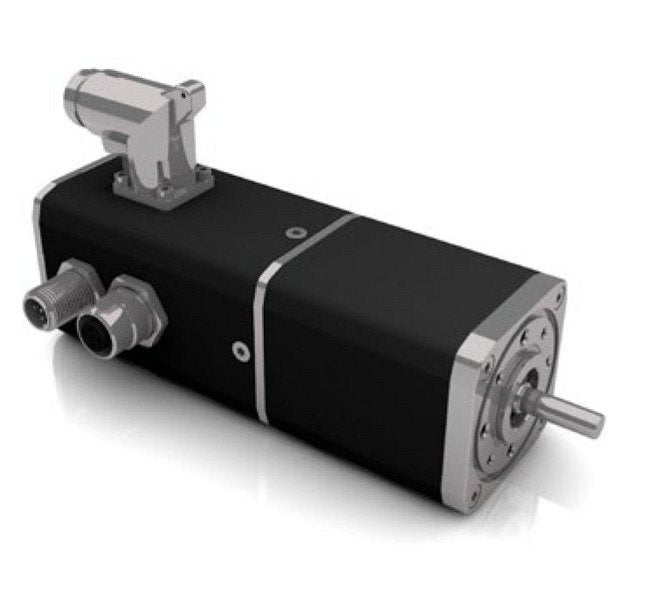

Experience precise control and high performance with the BG Series Brushless DC Motor. Rated at 2.84 A and 109.5 W, this motor ensures exceptional positioning accuracy and control characteristics with its integrated magnetic encoder. Featuring field-oriented control and programmable options, it offers versatility for various applications. With high IP protection and overload protection, it guarantees reliable operation. Certified to meet China Quality Certification (CQC), European Conformity (CE), and more, this motor is ideal for industries requiring top standards compliance.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelVibration resistanceHigh efficiencySinusoidal vector controlS-RampeInterpolationSSI version availableSafe torque off version availableOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
109.5 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Nominal Current
2.84 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
109.5 W
Technical Specs Nominal Speed
3970 rpm
Technical Specs Nominal Torque
0.263 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs No Load Speed
4380 rpm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
44 g/cm²
Technical Specs Weight Of Motor
0.76 kg
