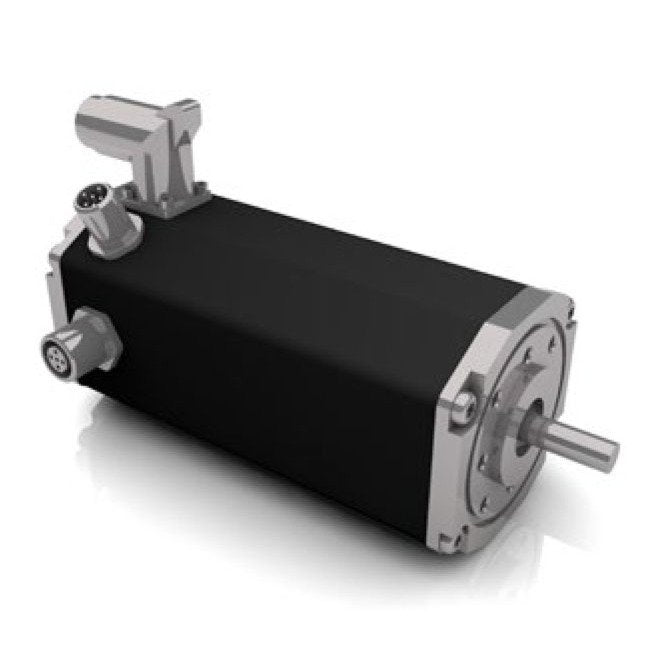

BG Series Brushless DC Motor with Integrated Control Electronics
BG Series Brushless DC Motor with Integrated Control Electronics
SKU:BGS-5f3c6c
High-performance brushless DC motor with integrated controls for precise operation in various applications. Meets CQC, CE, and UL standards.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
BG Series Brushless DC Motor with Integrated Control Electronics
$499.99
Quantity: 1
Claim Your Seller Account
BG Series Brushless DC Motor with Integrated Control Electronics
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series Brushless DC Motor with Integrated Control Electronics offers precise control through CANopen or standalone operation, equipped with an integrated 4Q servo controller for high-position accuracy. With field-oriented control and a resolution of 4096 cpr, this motor provides excellent control characteristics. It features speed, positioning, and current control options, can be combined with encoders, brakes, and gearboxes, and offers high IP protection. Programmable with Motion Code and Smart Diagnostics, this motor meets China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL) standards.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
306 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
446 W
Technical Specs Maximum Torque
1.85 N·m
Technical Specs Nominal Current
10.8 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
226 W
Technical Specs Nominal Speed
3550 rpm
Technical Specs Nominal Torque
0.6 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3800 rpm
Technical Specs Peak Current
26 A
Technical Specs Peak Power
732 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
129 g/cm²
Technical Specs Torque Constant
0.071 N·mA-1
Technical Specs Weight Of Motor
1.65 kg
