BHME45 Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 3/8 Inch (in) Barb Size Elbow
BHME45 Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 3/8 Inch (in) Barb Size Elbow
SKU:BAR-960fc8
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
BHME45 Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 3/8 Inch (in) Barb Size Elbow
$49.99
Quantity: 1
Claim Your Seller Account
BHME45 Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 3/8 Inch (in) Barb Size Elbow
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

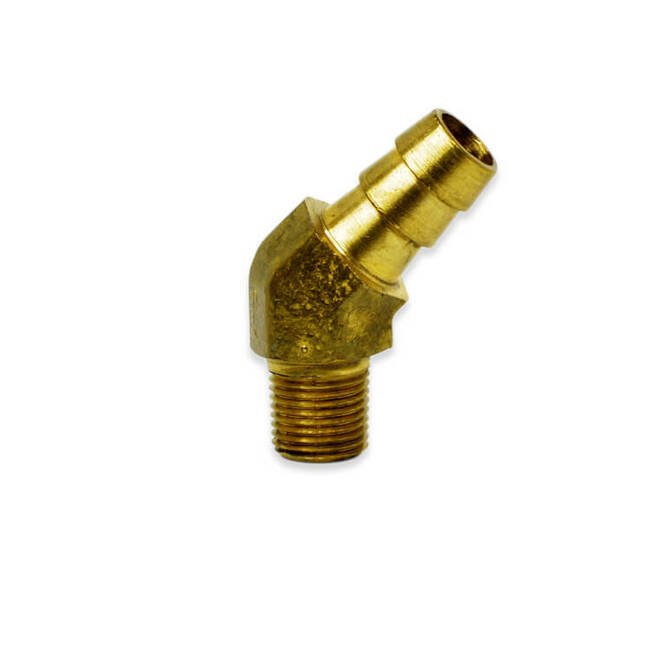

The BHME45 series is a forged brass multi-barbed 45º elbow with male NPT threads. Flow can be equal or reduced.
Product Specifications
Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Barb Size
3/8 in
Technical Specs Barb Style
Multi-Barbed
Technical Specs Elbow Angle
45 º
Technical Specs Material
Forged Brass
Technical Specs Maximum Operating Pressure
150 psi
Technical Specs Series
BHME45
Technical Specs Temperature Range
-40 to 160 ºF
Technical Specs Thread Size
1/4 in
Technical Specs Thread Type
Male National Pipe Thread (MNPT)
