Bi-Directional DC/DC Converters
Bi-Directional DC/DC Converters
SKU:BID-91d279
Bi-directional DC/DC converter with user-programmable parameters, advanced protection features, and fault detection diagnostics. Ideal for energy storage applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Bi-Directional DC/DC Converters
$1,299.99
Quantity: 1
Claim Your Seller Account
Bi-Directional DC/DC Converters
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

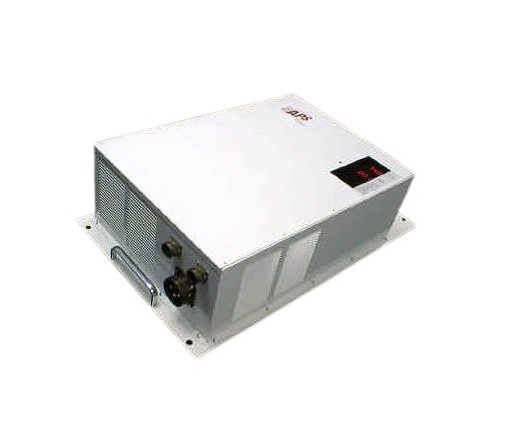

The APS AP-6699 BCDC Battery Charger / DC Converter offers bi-directional conversion capability, seamlessly transitioning between charging a battery bank from a DC Bus to sourcing current from the battery into the DC Bus. With user-programmable parameters via RS485 interface and comprehensive protection features like overvoltage and overcurrent protection, this converter ensures efficient and safe operation. Featuring optional front panel displays for easy monitoring and fault detection diagnostics, this precision charger is suitable for a wide range of energy storage applications, meeting the demanding requirements of institutional and government procurement.
Product Specifications
Additional Information Additional Information
Precision battery charger designed to operate over a wide range of input voltages and loads. Designed for use in energy storage applications.From a preset minimum voltage to the batteryâs float value, the charging current will linearly taper off to zero amps, switching from current control to voltage control to maintain a constant voltage output. The charge current limit value, knee voltage, and float voltage will be programmable via the RS-485 operator interface.Standard size converter is 20kW which can be paralleled up to 80kW. Other power levels available.
Environmental Cooling
Internal Blower
Environmental Non Condensing Humidity
0 to 95 %
Environmental Operating Temperature Range
-20 to 50 ºC
Environmental Storage Temperature Range
-40 to +85 ºC
Features Features
Seamless transition from charge to discharge based upon battery voltageComplete Fault Detection Diagnostics including:DC Bus Over VoltageOutput Over CurrentHeatsink Over TemperatureControl Power Under VoltageUser programmable via RS485 communication port
Optional Front Panel Displays And Status Indicators Optional Fro
Digital VoltmeterDigital AmmeterLight-Emitting Diode (LED) Normal Battery VoltageLight-Emitting Diode (LED) Normal Input VoltageLight-Emitting Diode (LED) Battery Over TemperatureLight-Emitting Diode (LED) BCDC FailureLight-Emitting Diode (LED) BCDC Over TemperatureLight-Emitting Diode (LED) Low Battery VoltageLight-Emitting Diode (LED) Over Current Latch
Programmable Parameters Programmable Parameters
The following system parameters are programmable via the RS485 interface within their specified range of adjustment:Charge Current LimitFloat Mode Current LimitCharge Topping VoltageFloat VoltageDischarge Current LimitMax Current Voltage Set PointCut out VoltageCut in Voltage
Protection Features Protection Features
BCDC latches off in the event of over voltage or over currentBCDC latches off if over temp is detected on any power semiconductorOutput current limitingOver voltage, over current and over temp protection for IGBTsInternal soft start contactor and inrush limiting resistor
Technical Specs Brands
Applied Power Systems, Inc.
